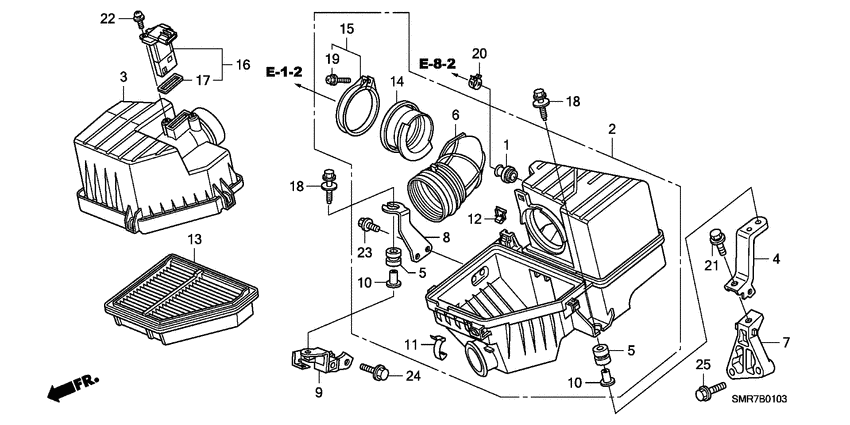

Air cleaner (1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE S
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17136-REJ-W00 GrommetBREATHER PIPE |
17136-REJ-W00 |
US $2.19 |
||
|
2
|
2
17201-RSJ-E00
Case set
|
17201-RSJ-E00 |
— | ||
|
3
|
3
17210-RSJ-E00
Cover comp.
|
17210-RSJ-E00 |
— | ||
|
4
|
4
17211-RSJ-E00
Stay comp
|
17211-RSJ-E00 |
— | ||
|
5
|
5
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
5
|
5
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
6
|
6
17212-RB0-000
Tube
|
17212-RB0-000 |
— | ||
|
7
|
7
17213-RSJ-E00 BracketAIR CLEANER |
17213-RSJ-E00 |
US $18.56 |
||
|
8
|
8
17214-RSJ-E00
Stay
|
17214-RSJ-E00 |
— | ||
|
9
|
9
17215-RSJ-E00
Stay comp. a
|
17215-RSJ-E00 |
— | ||
|
10
|
10
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
11
|
11
17217-P2J-300 ClipAIR CLEANER |
17217-P2J-300 |
from US $2.69 |
||
|
12
|
12
17217-RNA-A00 ClipAIR CLEANER |
17217-RNA-A00 |
US $2.31 |
||
|
13
|
13
17220-RSJ-E00
Element assy.
|
17220-RSJ-E00 |
— | ||
|
14
|
14
17228-RSJ-E00
Joint
|
17228-RSJ-E00 |
— | ||
|
15
|
15
17315-RAA-A00 ClampAIR FLOW (74) |
17315-RAA-A00 |
US $5.32 |
||
|
16
|
16
37980-RNA-A01 Meter assyAIR FLOW |
37980-RNA-A01 |
US $206.72 |
||
|
17
|
17
37985-RAD-L11 Gasket |
37985-RAD-L11 |
US $4.44 |
||
|
18
|
18
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
|
19
|
19
90005-RGA-000 BoltCLAMP, 4X25 |
90005-RGA-000 |
US $1.33 |
||
|
20
|
20
91405-PG7-003 ClipHOSE (D13) |
91405-PG7-003 |
US $3.26 |
||
|
21
|
21
93406-080-200-8 Bolt-washer8X20 |
93406-080-200-8 |
from US $0.67 |
||
|
22
|
22
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
23
|
23
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
24
|
24
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
25
|
25
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
