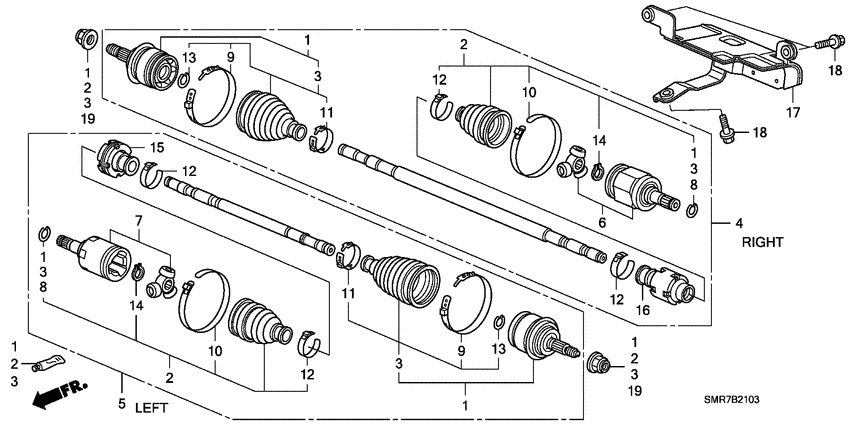

Front driveshaft (1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE S
- area code
- KG
- left-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44014-SMG-E50
Joint set
|
44014-SMG-E50 |
— | ||
|
2
|
2
44017-SDY-T00
Boot set
|
44017-SDY-T00 |
— | ||
|
3
|
3
44018-SDY-T00
Boot set
|
44018-SDY-T00 |
— | ||
|
4
|
4
44305-SMG-E50
Driveshaft assy.
|
44305-SMG-E50 |
— | ||
|
5
|
5
44306-SMG-E51
Driveshaft assy.
|
44306-SMG-E51 |
— | ||
|
6
|
6
44310-SMG-E50
Joint comp
|
44310-SMG-E50 |
— | ||
|
7
|
7
44310-S5A-N00 Joint compINBOARD |
44310-S5A-N00 |
US $380.80 |
||
|
8
|
8
44319-S04-300 Set ring26X1.8 |
44319-S04-300 |
from US $1.85 |
||
| replacement | |||||
|
8
|
8
44319-SR1-003 Set ring26X1.8 (GKN) |
44319-SR1-003 |
US $4.49 |
||
|
9
|
9
44327-SDG-P01 Band bDRIVESHAFT (OETIKER INDUSTRIES) |
44327-SDG-P01 |
US $6.86 |
||
|
9
|
9
44327-S04-A01 Band bDRIVESHAFT (NIPPON HATSUJO) |
44327-S04-A01 |
US $6.86 |
||
|
10
|
10
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
11
|
11
44329-SDG-P01 Band cDRIVESHAFT (OETIKER INDUSTRIES) |
44329-SDG-P01 |
US $7.56 |
||
|
11
|
11
44329-S04-A01 Band cDRIVESHAFT (NIPPON HATSUJO) |
44329-S04-A01 |
US $5.32 |
||
|
12
|
12
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
13
|
13
44337-SA2-300 Ring bSTOPPER |
44337-SA2-300 |
US $1.75 |
||
|
14
|
14
44338-SA2-300 Circlip24MM |
44338-SA2-300 |
US $2.52 |
||
|
15
|
15
44351-SLD-901 DamperDYNAMIC |
44351-SLD-901 |
US $19.33 |
||
|
16
|
16
44351-SMG-E01
Damper
|
44351-SMG-E01 |
— | ||
|
17
|
17
44517-SMG-G00 Cover comp.HEAT |
44517-SMG-G00 |
US $57.73 |
||
|
18
|
18
90165-TF0-J01 BoltFLANGE, 8X35 |
90165-TF0-J01 |
US $1.61 |
||
|
19
|
19
90305-S1A-000 NutSPINDLE |
90305-S1A-000 |
from US $6.44 |
||
