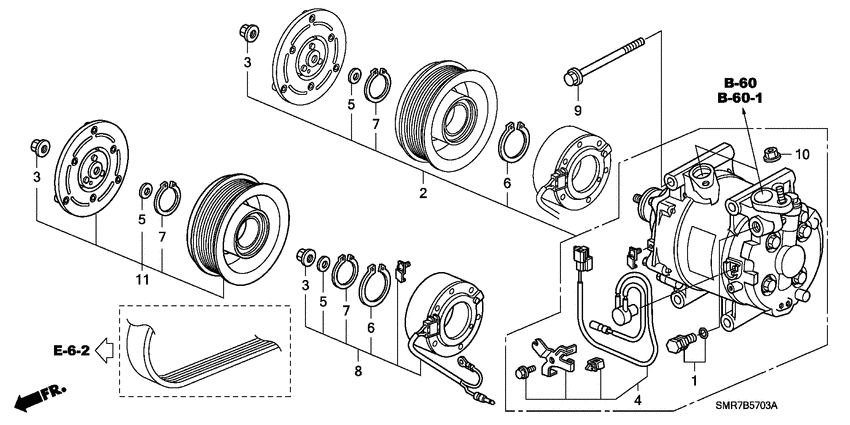

Air conditioner (COMPRESSOR; 1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE S
- area code
- KS
- left-hand drive
- +
- auto cruise
- +
- side curtain srs
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PDF-E02
Valve sub assy.
|
38801-PDF-E02 |
— | ||
|
2
|
2
38810-RSJ-E01
Compressor comp.
|
38810-RSJ-E01 |
— | ||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38908-RSJ-E01
Protector set
|
38908-RSJ-E01 |
— | ||
|
5
|
5
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
6
|
6
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
7
|
7
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
8
|
8
38924-RLC-014 Coil setFIELD |
38924-RLC-014 |
US $109.48 |
||
|
9
|
9
90023-PWA-000 BoltFLANGE, 8X102 |
90023-PWA-000 |
US $3.08 |
||
|
10
|
10
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
11
|
11
38900-RSJ-E01
Clutch set
|
38900-RSJ-E01 |
— |
