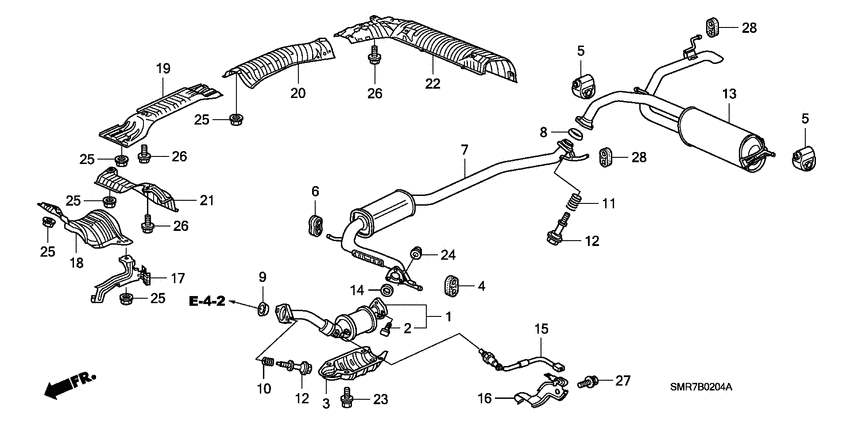

Exhaust pipe/silencer (1.4L) Diagram Honda CIVIC
- Year
- 2009
- Model code
- CIVIC
- Sales region
- General
- Engine
- L13Z
- transmission
- IMT
- Number of doors
- 3
- grade
- 1.4 TYPE S
- area code
- KS
- left-hand drive
- +
- auto cruise
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18160-RSJ-E00
Converter comp.
|
18160-RSJ-E00 |
— | ||
|
2
|
2
18176-PT0-003 BoltCONVERTER |
18176-PT0-003 |
US $7 |
||
|
3
|
3
18181-RB0-000 COVER COMP., LOWER |
18181-RB0-000 |
US $30.46 |
||
|
4
|
4
18215-SMG-E01 RubberEX. MOUNTING |
18215-SMG-E01 |
US $5.88 |
||
|
5
|
5
18215-SMG-E12 RubberEX. MOUNTING(TRI) |
18215-SMG-E12 |
US $9.24 |
||
|
5
|
5
18215-SMG-E11 RubberEX. MOUNTING (YAMASHITA) |
18215-SMG-E11 |
from US $9.44 |
||
|
6
|
6
18215-SMG-E32 RubberEX. MOUNTING |
18215-SMG-E32 |
US $9.10 |
||
|
7
|
7
18220-SMG-G11
Pipe b
|
18220-SMG-G11 |
— | ||
|
8
|
8
18229-S7S-003 GasketEX. FLEXIBLE (50.8MM-64MM) |
18229-S7S-003 |
from US $17.92 |
||
|
9
|
9
18229-TF0-013 GasketEX. FLEXIBLE |
18229-TF0-013 |
US $26.63 |
||
|
10
|
10
18230-SA0-930 SpringFLEXIBLE JOINT |
18230-SA0-930 |
from US $3.74 |
||
|
11
|
11
18230-SV4-000 SpringFLEXIBLE JOINT |
18230-SV4-000 |
from US $3.55 |
||
|
12
|
12
18231-SR3-A22 Bolt bFLEXIBLE JOINT |
18231-SR3-A22 |
from US $9.36 |
||
|
13
|
13
18307-SMG-E11
Silencer comp
|
18307-SMG-E11 |
— | ||
|
14
|
14
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
15
|
15
36532-RSJ-E01 SensorOXYGEN |
36532-RSJ-E01 |
US $236.80 |
||
|
16
|
16
36534-RSH-E00
Stay
|
36534-RSH-E00 |
— | ||
|
17
|
17
36535-RSJ-E00 ClampOXYGEN SENSOR |
36535-RSJ-E00 |
US $20.10 |
||
|
18
|
18
74601-SMG-E50
Plate a
|
74601-SMG-E50 |
— | ||
|
19
|
19
74603-SMG-E00 Plate cFLOOR HEAT BAFFLE |
74603-SMG-E00 |
US $142.08 |
||
|
20
|
20
74604-SMT-E00 Plate dFLOOR HEAT BAFFLE |
74604-SMT-E00 |
US $80.64 |
||
|
21
|
21
74620-SMG-E00
Plate comp. b
|
74620-SMG-E00 |
— | ||
|
22
|
22
74655-SMG-E00 PlateSILENCER BAFFLE |
74655-SMG-E00 |
US $170.24 |
||
|
23
|
23
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
24
|
24
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
25
|
25
90301-SV7-000 NutPAINT CUTTING, 6MM |
90301-SV7-000 |
US $1.61 |
||
|
26
|
26
93404-060-120-5
Bolt-washer
|
93404-060-120-5 |
— | ||
| replacement | |||||
|
26
|
26
93404-060-140-5 Bolt-washer6X14 |
93404-060-140-5 |
from US $0.52 |
||
|
27
|
27
93405-060-120-4 Bolt-washer6X12 |
93405-060-120-4 |
US $0.65 |
||
|
28
|
28
18215-SMG-E51
Rubber
|
18215-SMG-E51 |
— | ||
