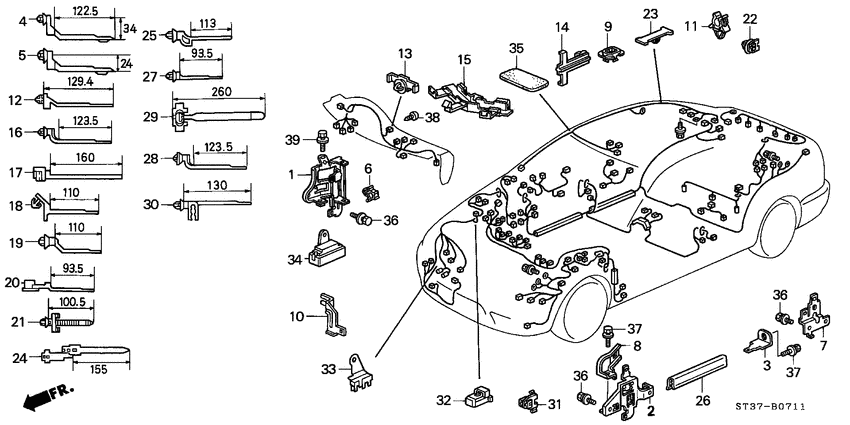

Harness band/bracket (RH) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.4I
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- alloy wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32113-P01-000
Stay comp
|
32113-P01-000 |
— | ||
|
2
|
2
32113-SR3-000
Stay
|
32113-SR3-000 |
— | ||
|
3
|
3
32114-SR3-000
Bracket
|
32114-SR3-000 |
— | ||
|
4
|
4
32132-SM4-003 BandWIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
32132-SM4-003 |
US $2.73 |
||
|
5
|
5
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
6
|
6
32165-SA5-003
Clip
|
32165-SA5-003 |
— | ||
| replacement | |||||
|
6
|
6
90674-769-000
Clamp, p.t.o. cable (b)
|
90674-769-000 |
— | ||
|
7
|
7
32171-SK3-E00
Bracket
|
32171-SK3-E00 |
— | ||
|
8
|
8
32744-P1K-E00
Stay d
|
32744-P1K-E00 |
— | ||
|
9
|
9
32758-SE7-300
Grommet
|
32758-SE7-300 |
— | ||
|
11
|
11
90666-SF4-J31
Clip
|
90666-SF4-J31 |
— | ||
|
12
|
12
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
13
|
13
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
14
|
14
91509-SA5-003 ClipOFFSET (45)(GRAY)(57MM) |
91509-SA5-003 |
US $2.38 |
||
|
15
|
15
91539-ST3-300
Clip
|
91539-ST3-300 |
— | ||
|
16
|
16
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
17
|
17
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
18
|
18
91550-ST0-003 ClipWIRE HARNESS (NATURAL) (110MM) |
91550-ST0-003 |
US $1.68 |
||
|
19
|
19
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
20
|
20
91552-SS0-003 ClipWIRE HARNESS (M5) (BROWN) (93.5MM) |
91552-SS0-003 |
US $1.68 |
||
|
21
|
21
91554-SH3-003 BandWIRE HARNESS (NATURAL) (100.5MM) |
91554-SH3-003 |
US $2.52 |
||
|
22
|
22
91557-SR3-003
Clip
|
91557-SR3-003 |
— | ||
|
23
|
23
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
24
|
24
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
26
|
26
91562-ST3-E01
Protector
|
91562-ST3-E01 |
— | ||
|
27
|
27
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
29
|
29
91570-SH3-003 BandWIRE HARNESS (NATURAL) |
91570-SH3-003 |
US $3.15 |
||
|
31
|
31
91572-SR3-003
Clip
|
91572-SR3-003 |
— | ||
|
32
|
32
91637-SF1-003 Cap090 2P |
91637-SF1-003 |
from US $2.45 |
||
|
33
|
33
91763-SH3-003 BarJOINT (6P) |
91763-SH3-003 |
US $11.56 |
||
|
34
|
34
91786-SR3-003 BarJOINT (10P) |
91786-SR3-003 |
US $6.72 |
||
|
35
|
35
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.96 |
||
|
36
|
36
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
37
|
37
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
39
|
39
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
