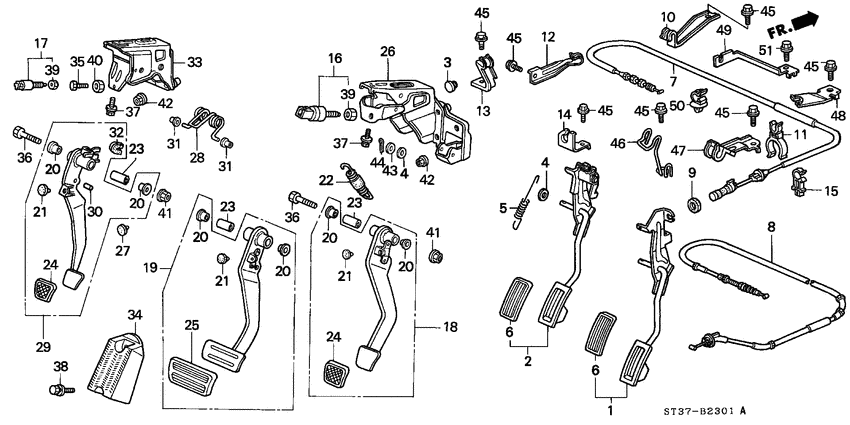

Pedal (RH) Diagram Honda CIVIC
- Year
- 1995
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14A
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.4I
- area code
- KE
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-ST3-E00
Pedal comp
|
17800-ST3-E00 |
— | ||
|
3
|
3
17805-SK3-000
Pad
|
17805-SK3-000 |
— | ||
|
4
|
4
17812-SK3-000
Washer
|
17812-SK3-000 |
— | ||
|
5
|
5
17814-SR3-000
Spring
|
17814-SR3-000 |
— | ||
|
6
|
6
17816-SK3-010
Cover
|
17816-SK3-010 |
— | ||
|
7
|
7
17910-ST3-E01
Wire
|
17910-ST3-E01 |
— | ||
|
9
|
9
17921-SK3-000
Seal
|
17921-SK3-000 |
— | ||
|
10
|
10
17925-SR3-N01
Clamp
|
17925-SR3-N01 |
— | ||
|
11
|
11
17926-SH3-003
Clip
|
17926-SH3-003 |
— | ||
|
12
|
12
17930-SK7-000
Stay
|
17930-SK7-000 |
— | ||
|
14
|
14
17934-SH3-000
Stay
|
17934-SH3-000 |
— | ||
|
15
|
15
17938-ST3-E01
Clip
|
17938-ST3-E01 |
— | ||
|
16
|
16
35350-SE0-A03 Switch assySTOP (TEC) |
35350-SE0-A03 |
US $32.31 |
||
|
18
|
18
46500-ST3-E00
Pedal assy
|
46500-ST3-E00 |
— | ||
|
20
|
20
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
21
|
21
46505-SK3-000
Pad
|
46505-SK3-000 |
— | ||
|
22
|
22
46530-SR3-000 Spring assyPEDAL RETURN |
46530-SR3-000 |
US $4.29 |
||
|
23
|
23
46535-SK3-000
Collar
|
46535-SK3-000 |
— | ||
|
24
|
24
46545-SK3-000
Cover
|
46545-SK3-000 |
— | ||
|
26
|
26
46590-ST3-E00
Bracket
|
46590-ST3-E00 |
— | ||
|
27
|
27
46905-SK7-000
Stopper
|
46905-SK7-000 |
— | ||
|
28
|
28
46907-SR3-000
Spring
|
46907-SR3-000 |
— | ||
|
29
|
29
46910-ST3-E00
Pedal comp
|
46910-ST3-E00 |
— | ||
|
30
|
30
46911-SN7-000
Bush
|
46911-SN7-000 |
— | ||
|
31
|
31
46981-ST3-E00
Bush a
|
46981-ST3-E00 |
— | ||
|
32
|
32
46982-ST3-E00
Bush b
|
46982-ST3-E00 |
— | ||
|
33
|
33
46990-ST3-E00
Bracket
|
46990-ST3-E00 |
— | ||
|
35
|
35
92201-10025-0H BoltHEX., 10X25 |
92201-10025-0H |
US $0.74 |
||
|
36
|
36
92201-10070-0J BoltHEX., 10X70 |
92201-10070-0J |
US $1.04 |
||
|
37
|
37
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
39
|
39
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
40
|
40
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
41
|
41
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
42
|
42
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
43
|
43
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
44
|
44
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
45
|
45
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
