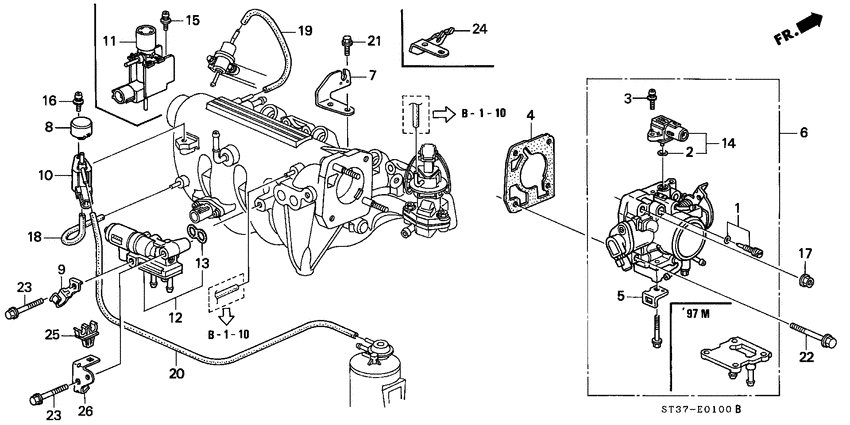

Throttle body (1.5L VTEC) Diagram Honda CIVIC
- Year
- 1996
- Model code
- CIVIC
- Sales region
- General
- Engine
- D15Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.5I
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-P45-G00
Screw set
|
16016-P45-G00 |
— | ||
|
2
|
2
16075-P07-000 O-ring |
16075-P07-000 |
from US $2.23 |
||
|
3
|
3
16080-P07-000 Screw-washer4X16 |
16080-P07-000 |
from US $2.37 |
||
|
4
|
4
16176-P06-A02 GasketTHROTTLE BODY (NIPPON LEAKLESS) |
16176-P06-A02 |
from US $5.18 |
||
|
5
|
5
16179-P1G-E00
Plate
|
16179-P1G-E00 |
— | ||
|
6
|
6
16400-P1G-E01
Throttle Body Assy
|
16400-P1G-E01 |
— | ||
|
7
|
7
16411-P07-900
Stay
|
16411-P07-900 |
— | ||
|
9
|
9
36151-P05-A00
Stay
|
36151-P05-A00 |
— | ||
|
11
|
11
36162-P2Y-G01
Valve assy.
|
36162-P2Y-G01 |
— | ||
|
12
|
12
36450-P1G-E01
Valve assy.
|
36450-P1G-E01 |
— | ||
|
13
|
13
36455-PT3-A01 Packing, ELECTRONIC AIR CONTROL VALVE (DENSO) |
36455-PT3-A01 |
from US $3.42 |
||
|
14
|
14
37830-P0G-S00
Sensor set
|
37830-P0G-S00 |
— | ||
| replacement | |||||
|
14
|
14
37830-PAA-S00 Sensor setMAP |
37830-PAA-S00 |
US $376.72 |
||
|
15
|
15
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
95005-351-051-C Tube3.5X105 (95005-35001-10M) |
95005-351-051-C |
US $1.55 |
||
|
19
|
19
95005-351-351-0
Tube
|
95005-351-351-0 |
— | ||
| replacement | |||||
|
19
|
19
95005-352-0010S
Tube 35x200
|
95005-352-0010S |
— | ||
|
20
|
20
95005-354-101-7
Tube
|
95005-354-101-7 |
— | ||
|
21
|
21
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
22
|
22
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
23
|
23
95701-080-450-8 BoltFLANGE, 8X45 |
95701-080-450-8 |
from US $0.81 |
||
