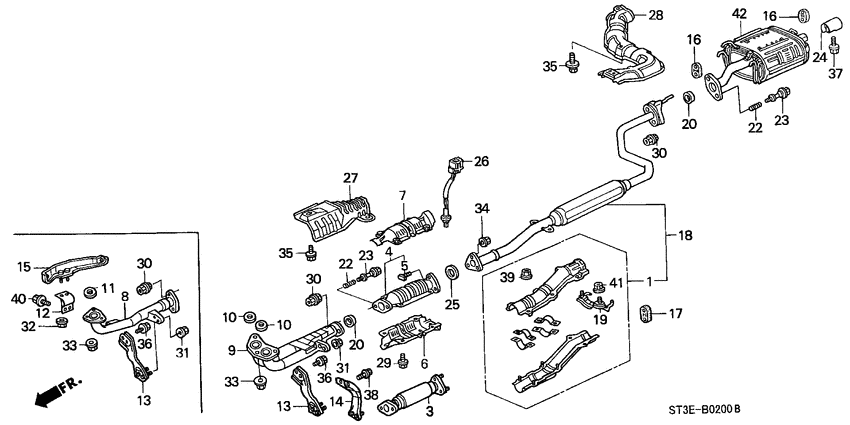

Exhaust pipe Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- D14Z
- transmission
- 4AT
- Number of doors
- 5
- grade
- 1.4I
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18020-ST3-G60
Insulator set
|
18020-ST3-G60 |
— | ||
|
4
|
4
18160-P1J-E00
Converter comp.
|
18160-P1J-E00 |
— | ||
|
5
|
5
18176-P08-003 BoltCONVERTER |
18176-P08-003 |
US $7 |
||
|
6
|
6
18181-PP4-E01
Cover
|
18181-PP4-E01 |
— | ||
|
7
|
7
18182-P2R-A00
Cover, UPPER
|
18182-P2R-A00 |
— | ||
|
8
|
8
18210-ST3-E40
Pipe a
|
18210-ST3-E40 |
— | ||
|
11
|
11
18212-671-003 GasketEX. PIPE(ISHINO) (59.5MM-60.5MM) |
18212-671-003 |
from US $7.70 |
||
|
13
|
13
18213-ST3-E70
Stay
|
18213-ST3-E70 |
— | ||
|
16
|
16
18215-SG4-U10
Rubber
|
18215-SG4-U10 |
— | ||
|
17
|
17
18215-SK3-E00
Rubber
|
18215-SK3-E00 |
— | ||
|
18
|
18
18220-ST3-G60
Pipe b
|
18220-ST3-G60 |
— | ||
|
19
|
19
18222-ST3-E70
Bracket
|
18222-ST3-E70 |
— | ||
|
20
|
20
18229-SB2-003 GasketEX. FLEXIBLE (45MM-59MM) |
18229-SB2-003 |
US $22.14 |
||
|
22
|
22
18230-SK3-000
Spring
|
18230-SK3-000 |
— | ||
|
23
|
23
18231-SR3-J01 Bolt aFLEXIBLE JOINT |
18231-SR3-J01 |
from US $9.36 |
||
|
25
|
25
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
26
|
26
36532-P1J-E01
Sensor
|
36532-P1J-E01 |
— | ||
|
27
|
27
74601-ST3-E01
Plate
|
74601-ST3-E01 |
— | ||
|
28
|
28
74651-ST3-E01
Plate
|
74651-ST3-E01 |
— | ||
|
29
|
29
90023-PK1-000
Bolt
|
90023-PK1-000 |
— | ||
| replacement | |||||
|
29
|
29
90023-PR7-A01 BOLT, FLANGE (6X12)6X12 (IWATA BOLT) |
90023-PR7-A01 |
US $2.96 |
||
|
30
|
30
90110-679-003 NutSELF-LOCK, 8MM |
90110-679-003 |
from US $5.05 |
||
|
31
|
31
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
33
|
33
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
34
|
34
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
35
|
35
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
35
|
35
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
36
|
36
93406-080-200-8 Bolt-washer8X20 |
93406-080-200-8 |
from US $0.67 |
||
|
39
|
39
99FN1-06041
Nut
|
99FN1-06041 |
— | ||
|
41
|
41
99FX1-08041
Nut
|
99FX1-08041 |
— | ||
|
42
|
42
18307-ST3-E40
Silencer comp
|
18307-ST3-E40 |
— | ||
