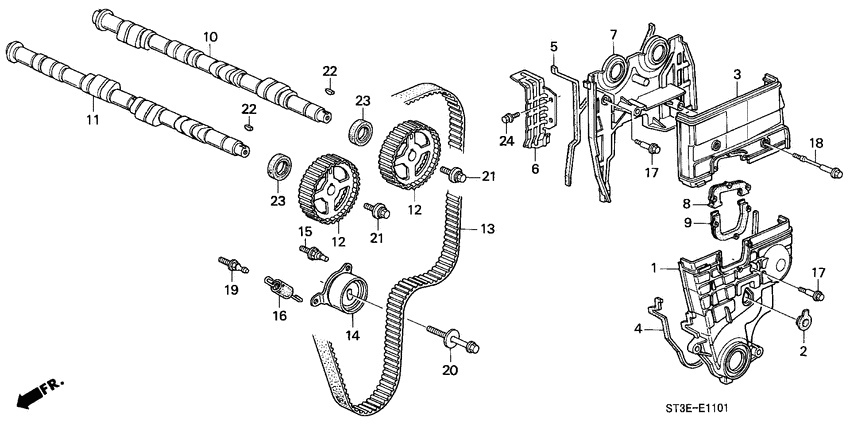

Camshaft/timing belt (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- leather seat
- +
- air conditioner (dealer set)
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11810-P3F-000 COVER, TIMING BELT LOWER |
11810-P3F-000 |
US $37.70 |
||
|
2
|
2
11812-PJ7-310 GrommetTIMING BELT COVER |
11812-PJ7-310 |
US $3.63 |
||
|
3
|
3
11820-P72-000 COVER, TIMING BELT MIDDLE |
11820-P72-000 |
US $29.32 |
||
|
4
|
4
11831-PR3-000 Rubber, LOWER SEAL |
11831-PR3-000 |
US $20.40 |
||
|
5
|
5
11832-P72-000 RUBBER, R. BACK SEAL |
11832-P72-000 |
US $24.21 |
||
|
6
|
6
11836-P72-000
Insulator
|
11836-P72-000 |
— | ||
|
7
|
7
11840-P72-010 COVER, TIMING BELT BACK |
11840-P72-010 |
US $20.94 |
||
|
8
|
8
11925-P30-000 Rubber A, ENGINE MOUNTING BRACKET SEAL |
11925-P30-000 |
US $5.33 |
||
|
9
|
9
11926-PR3-000 Rubber B, ENGINE MOUNTING BRACKET SEAL |
11926-PR3-000 |
US $4.88 |
||
|
10
|
10
14111-P72-000
Camshaft
|
14111-P72-000 |
— | ||
|
11
|
11
14121-P72-000
Camshaft
|
14121-P72-000 |
— | ||
|
12
|
12
14211-PR3-003
Pulley
|
14211-PR3-003 |
— | ||
|
13
|
13
14400-P72-014 BeltTIMING (126RU26) |
14400-P72-014 |
US $90.63 |
||
|
14
|
14
14510-P30-003 Tensioner, TIMING BELT (KOYO SEIKO) |
14510-P30-003 |
from US $49.90 |
||
|
15
|
15
14513-PK1-000
Bolt
|
14513-PK1-000 |
— | ||
|
16
|
16
14516-PR4-A00 Spring, TIMING BELT ADJUSTER |
14516-PR4-A00 |
from US $3.80 |
||
|
17
|
17
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
18
|
18
90010-PR3-000 BoltTIMING BELT COVER |
90010-PR3-000 |
US $4.14 |
||
|
19
|
19
90012-PH3-004 BoltTIMING BELT ADJUSTER SPRING (NAGOYA RASHI) |
90012-PH3-004 |
from US $3.92 |
||
|
20
|
20
90026-PR3-003 BoltTENSIONER |
90026-PR3-003 |
from US $5.70 |
||
|
21
|
21
90031-PV0-003 Bolt-washer10X30 |
90031-PV0-003 |
US $9.25 |
||
| replacement | |||||
|
21
|
21
90031-PV0-305 Bolt-washer (10x30) |
90031-PV0-305 |
from US $4.29 |
||
|
22
|
22
90741-657-000 Key25.4X13 |
90741-657-000 |
from US $4.46 |
||
|
23
|
23
91213-PR3-004 Oil seal29X43X8 (ARAI) |
91213-PR3-004 |
from US $8.14 |
||
|
24
|
24
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
24
|
24
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
