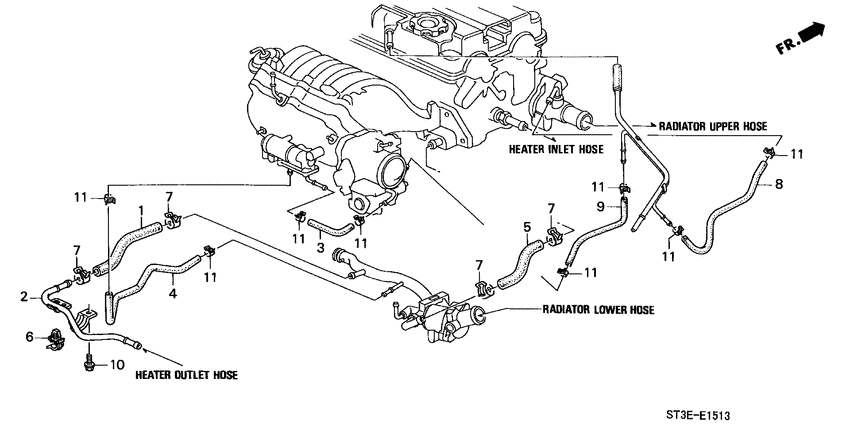

Water hose (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- leather seat
- +
- air conditioner (dealer set)
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19503-P72-010
Hose
|
19503-P72-010 |
— | ||
|
2
|
2
19504-P72-010
Pipe b
|
19504-P72-010 |
— | ||
|
3
|
3
19506-P72-J00
Hose
|
19506-P72-J00 |
— | ||
|
4
|
4
19507-P72-010
Hose
|
19507-P72-010 |
— | ||
|
5
|
5
19508-P72-000
Hose
|
19508-P72-000 |
— | ||
|
6
|
6
19509-P72-003 ClampELECTRONIC AIR CONTROL VALVE HOSE |
19509-P72-003 |
US $1.68 |
||
|
7
|
7
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
8
|
8
19527-P72-000 Hose aBREATHER HEATER |
19527-P72-000 |
US $6.72 |
||
|
9
|
9
19528-P72-000 Hose bBREATHER HEATER |
19528-P72-000 |
US $5.32 |
||
|
10
|
10
90021-P72-000 BoltFLANGE, 6X12 |
90021-P72-000 |
US $1.40 |
||
|
11
|
11
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
