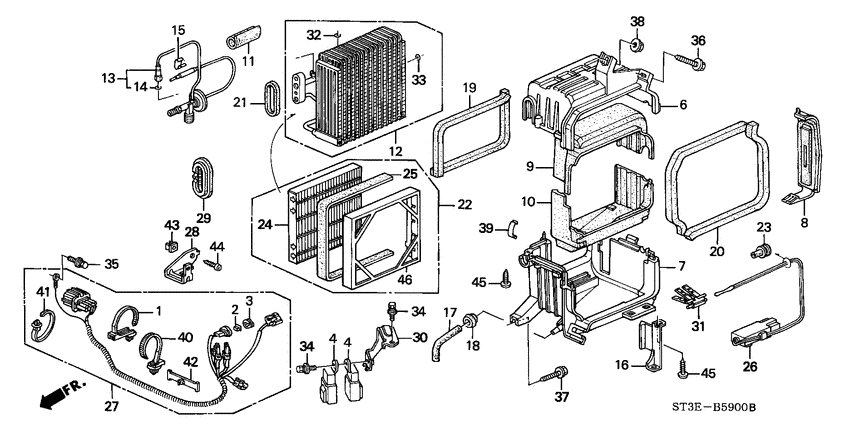

Air conditioner (COOLING UNIT; LH) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- leather seat
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
2
|
2
32147-SF1-003 ConnectorDIODE(3P) |
32147-SF1-003 |
from US $11.62 |
||
|
3
|
3
32148-SF1-003 RubberSEAL |
32148-SF1-003 |
US $2.17 |
||
|
4
|
4
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
6
|
6
80201-S01-G00
Case
|
80201-S01-G00 |
— | ||
|
7
|
7
80202-S01-G00
Case
|
80202-S01-G00 |
— | ||
|
8
|
8
80203-S01-G00
Lid
|
80203-S01-G00 |
— | ||
|
9
|
9
80205-S01-G00
Insulator
|
80205-S01-G00 |
— | ||
|
10
|
10
80206-ST3-G00 InsulatorEVAPORATOR LOWER |
80206-ST3-G00 |
US $14.85 |
||
|
11
|
11
80214-SL5-A01 InsulatorEXPANSION |
80214-SL5-A01 |
US $7.81 |
||
|
12
|
12
80215-ST3-G11
Evaporator comp.
|
80215-ST3-G11 |
— | ||
|
13
|
13
80220-S84-A02
Valve assy.
|
80220-S84-A02 |
— | ||
|
14
|
14
80223-ST7-A11 O-ringFUJI KOKI AMERICA |
80223-ST7-A11 |
US $2.73 |
||
|
15
|
15
80225-SR3-010 Clamp |
80225-SR3-010 |
US $2.38 |
||
|
16
|
16
80266-ST3-G00
Plate
|
80266-ST3-G00 |
— | ||
|
17
|
17
80271-S04-000 HoseDRAIN |
80271-S04-000 |
US $4.62 |
||
|
18
|
18
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
19
|
19
80286-S01-G00
Seal
|
80286-S01-G00 |
— | ||
|
20
|
20
80287-S01-G00
Seal
|
80287-S01-G00 |
— | ||
|
21
|
21
80288-S01-G00
Seal
|
80288-S01-G00 |
— | ||
|
22
|
22
80290-ST3-E01 Filter assyAIR CONDITIONER |
80290-ST3-E01 |
US $64 |
||
|
23
|
23
80291-SR3-000 GrommetEVAPORATOR SENSOR |
80291-SR3-000 |
US $3.08 |
||
|
24
|
24
80291-ST3-505
Element
|
80291-ST3-505 |
— | ||
|
25
|
25
80293-ST3-E01 Seal |
80293-ST3-E01 |
US $10.42 |
||
|
26
|
26
80430-S01-A21
Thermostat
|
80430-S01-A21 |
— | ||
|
27
|
27
80460-ST3-G00
Harness
|
80460-ST3-G00 |
— | ||
|
28
|
28
80463-SR3-A00
Bracket
|
80463-SR3-A00 |
— | ||
|
29
|
29
80464-SR3-000
Grommet
|
80464-SR3-000 |
— | ||
|
30
|
30
80491-ST3-E00
Bracket
|
80491-ST3-E00 |
— | ||
|
31
|
31
80566-SR3-003 ClipEVAPORATOR SENSOR |
80566-SR3-003 |
US $3.36 |
||
|
32
|
32
80872-ST7-000 O-ring1/2" |
80872-ST7-000 |
from US $2.52 |
||
|
33
|
33
80873-ST7-000 O-ring8MM |
80873-ST7-000 |
from US $2.74 |
||
|
34
|
34
90012-PC6-000 BoltSPECIAL, 6X12 (+) (DACRO COATING) |
90012-PC6-000 |
US $1.75 |
||
|
35
|
35
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
36
|
36
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
37
|
37
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
38
|
38
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
||
|
39
|
39
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
40
|
40
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
41
|
41
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
42
|
42
91559-SE3-003 ClipWIRE HARNESS (WHITE) (55MM) |
91559-SE3-003 |
from US $2.24 |
||
|
43
|
43
91619-SA5-000 GrommetSCREW, 6MM |
91619-SA5-000 |
from US $2.12 |
||
|
44
|
44
93904-46220 ScrewTAPPING, 6X16 |
93904-46220 |
US $0.44 |
||
|
45
|
45
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
46
|
46
80292-ST3-E01 FrameFILTER |
80292-ST3-E01 |
from US $14.15 |
