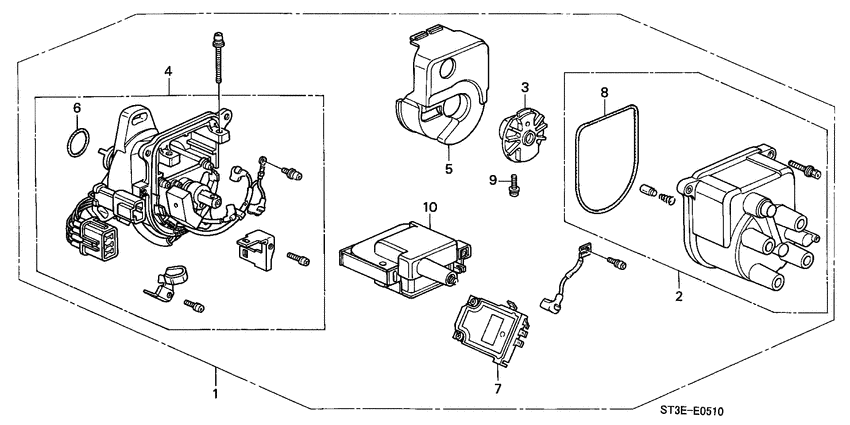

Distributor (TEC; TD-86U) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- leather seat
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-P73-004
Distributor assy
|
30100-P73-004 |
— | ||
|
2
|
2
30102-P72-006 Cap assy, Distributor |
30102-P72-006 |
US $33.66 |
||
|
3
|
3
30103-P73-003 Head assy, ROTOR |
30103-P73-003 |
US $38 |
||
|
4
|
4
30105-P73-004
Housing comp
|
30105-P73-004 |
— | ||
|
5
|
5
30107-P73-004
Cover
|
30107-P73-004 |
— | ||
|
6
|
6
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $2.43 |
||
|
7
|
7
30130-P72-006
Igniter unit
|
30130-P72-006 |
— | ||
|
8
|
8
30132-P72-006
Packing
|
30132-P72-006 |
— | ||
|
9
|
9
30135-P73-004 Screw-washer5X12 |
30135-P73-004 |
US $2.44 |
||
|
10
|
10
30510-PT2-006 Ignition Coil |
30510-PT2-006 |
US $133.14 |
