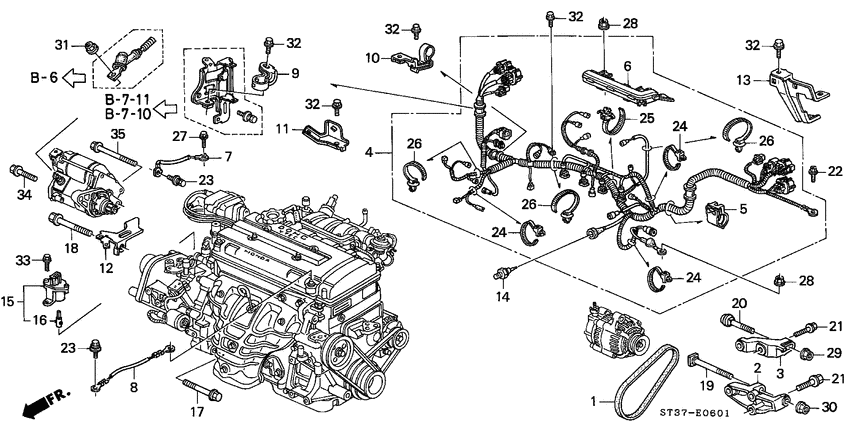

Engine wire harness (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (dealer set)
- +
- headlight washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31110-P72-004 BeltALTERNATOR (MITSUBOSHI) |
31110-P72-004 |
US $27.78 |
||
|
2
|
2
31112-P2T-000 Bracket comp. aALTERNATOR |
31112-P2T-000 |
US $52.99 |
||
|
3
|
3
31113-P2T-000 Bracket bALTERNATOR |
31113-P2T-000 |
US $38.27 |
||
|
4
|
4
32110-P9K-G00
Harness
|
32110-P9K-G00 |
— | ||
|
5
|
5
32117-P65-003 HolderCORRUGATED(DARK BLUE) (15MM) |
32117-P65-003 |
US $2.38 |
||
|
5
|
5
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
6
|
6
32127-P05-A00
Holder comp
|
32127-P05-A00 |
— | ||
|
7
|
7
32601-ST3-E00
Cable assy
|
32601-ST3-E00 |
— | ||
|
8
|
8
32610-SR3-900
Cable
|
32610-SR3-900 |
— | ||
|
10
|
10
32746-P05-A00
Clamp f
|
32746-P05-A00 |
— | ||
|
12
|
12
32752-P01-000
Stay b
|
32752-P01-000 |
— | ||
|
13
|
13
32754-P72-000
Stay d
|
32754-P72-000 |
— | ||
|
14
|
14
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
14
|
14
37240-PT0-023
Switch
|
37240-PT0-023 |
— | ||
| replacement | |||||
|
14
|
14
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
15
|
15
78410-SV4-003 Sensor assySPEED (MATSUSHITA) |
78410-SV4-003 |
US $105.38 |
||
|
16
|
16
78411-SM4-003 JointSPEED SENSOR (MATSUSHITA) |
78411-SM4-003 |
US $2.10 |
||
|
17
|
17
90050-PG7-000 BoltFLANGE, 12X65 |
90050-PG7-000 |
US $3.18 |
||
|
18
|
18
90051-PE0-000 BoltFLANGE, 12X70 |
90051-PE0-000 |
US $3.42 |
||
|
19
|
19
90057-PG7-003 BoltALTERNATOR |
90057-PG7-003 |
US $5.21 |
||
|
20
|
20
90058-P72-000 BoltALTERNATOR UPPER |
90058-P72-000 |
US $5.37 |
||
|
21
|
21
90059-PR3-000 BoltKNOCK, 10X35 |
90059-PR3-000 |
US $3.74 |
||
|
22
|
22
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
23
|
23
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
24
|
24
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
25
|
25
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
26
|
26
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
27
|
27
92101-06008-0H
Bolt
|
92101-06008-0H |
— | ||
|
28
|
28
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
29
|
29
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
30
|
30
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
31
|
31
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
33
|
33
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
34
|
34
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
35
|
35
95701-101-050-8 BoltFLANGE, 10X105 |
95701-101-050-8 |
from US $1.63 |
||
