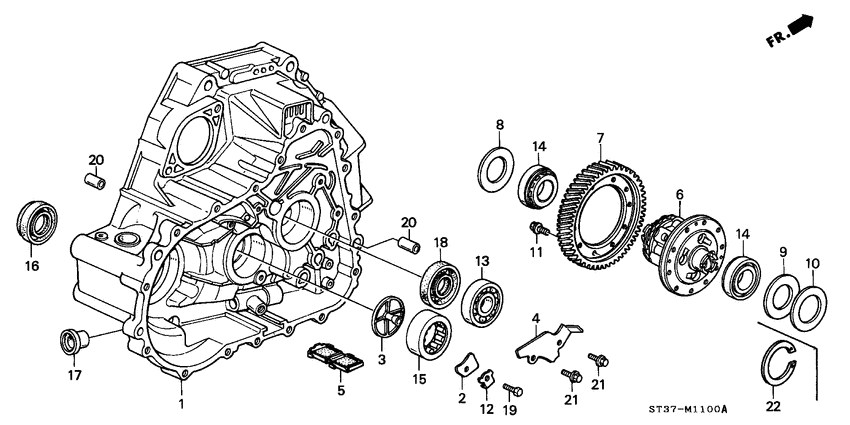

Clutch housing (DOHC) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- headlight washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-P21-020 Case comp.CLUTCH |
21000-P21-020 |
US $458.24 |
||
|
2
|
2
21101-PS1-000 PlateNEEDLE SET |
21101-PS1-000 |
US $5.74 |
||
|
3
|
3
21103-PS1-000
Plate c
|
21103-PS1-000 |
— | ||
|
4
|
4
21106-PS1-000 PlateOIL CHAMBER |
21106-PS1-000 |
US $5.46 |
||
|
5
|
5
21120-PG2-003 MagnetTRANSMISSION |
21120-PG2-003 |
US $6.02 |
||
|
6
|
6
41200-P80-003 Differential assyHELICAL LIMITED SLIP |
41200-P80-003 |
US $1,276.16 |
||
|
7
|
7
41233-P9B-E00
Gear
|
41233-P9B-E00 |
— | ||
|
8
|
8
41381-P80-000
Spacer
00000000 - 1005225 |
41381-P80-000 |
— | ||
|
9
|
9
41382-P80-000
Spacer
00000000 - 1004225 |
41382-P80-000 |
— | ||
|
10
|
10
41480-P5D-000
Shim au
00000000 - 1005225 |
41480-P5D-000 |
— | ||
|
10
|
10
41475-P5D-000
Shim ap
00000000 - 1005225 |
41475-P5D-000 |
— | ||
|
10
|
10
41470-P5D-000
Shim ak
00000000 - 1005225 |
41470-P5D-000 |
— | ||
|
10
|
10
41465-P5D-000
Shim af
00000000 - 1005225 |
41465-P5D-000 |
— | ||
|
10
|
10
41460-P5D-000
Shim aa
00000000 - 1005225 |
41460-P5D-000 |
— | ||
|
10
|
10
41482-P5D-000
Shim aw
00000000 - 1005225 |
41482-P5D-000 |
— | ||
|
10
|
10
41477-P5D-000
Shim ar
00000000 - 1005225 |
41477-P5D-000 |
— | ||
|
10
|
10
41472-P5D-000
Shim am
00000000 - 1005225 |
41472-P5D-000 |
— | ||
|
10
|
10
41467-P5D-000
Shim ah
00000000 - 1005225 |
41467-P5D-000 |
— | ||
|
10
|
10
41462-P5D-000
Shim ac
00000000 - 1005225 |
41462-P5D-000 |
— | ||
|
10
|
10
41479-P5D-000
Shim at
00000000 - 1005225 |
41479-P5D-000 |
— | ||
|
10
|
10
41474-P5D-000
Shim ao
00000000 - 1005225 |
41474-P5D-000 |
— | ||
|
10
|
10
41469-P5D-000
Shim aj
00000000 - 1005225 |
41469-P5D-000 |
— | ||
|
10
|
10
41464-P5D-000
Shim ae
00000000 - 1005225 |
41464-P5D-000 |
— | ||
|
10
|
10
41481-P5D-000
Shim av
00000000 - 1005225 |
41481-P5D-000 |
— | ||
|
10
|
10
41476-P5D-000
Shim aq
00000000 - 1005225 |
41476-P5D-000 |
— | ||
|
10
|
10
41471-P5D-000
Shim al
00000000 - 1005225 |
41471-P5D-000 |
— | ||
|
10
|
10
41466-P5D-000
Shim ag
00000000 - 1005225 |
41466-P5D-000 |
— | ||
|
10
|
10
41461-P5D-000
Shim ab
00000000 - 1005225 |
41461-P5D-000 |
— | ||
|
10
|
10
41483-P5D-000
Shim ax
00000000 - 1005225 |
41483-P5D-000 |
— | ||
|
10
|
10
41478-P5D-000
Shim as
00000000 - 1005225 |
41478-P5D-000 |
— | ||
|
10
|
10
41473-P5D-000
Shim an
00000000 - 1005225 |
41473-P5D-000 |
— | ||
|
10
|
10
41468-P5D-000
Shim ai
00000000 - 1005225 |
41468-P5D-000 |
— | ||
|
10
|
10
41463-P5D-000
Shim ad
00000000 - 1005225 |
41463-P5D-000 |
— | ||
|
11
|
11
90017-P80-J00 BoltSPECIAL, 10MM |
90017-P80-J00 |
US $4.40 |
||
|
12
|
12
90406-PS1-000
Washer
|
90406-PS1-000 |
— | ||
|
13
|
13
91002-PS1-003 BearingBALL, 28X60X15 |
91002-PS1-003 |
US $14.96 |
||
|
14
|
14
91005-P80-E31 BearingBALL, 40X80X18/19.5 (NTN) 1005226 - |
91005-P80-E31 |
US $26.24 |
||
|
14
|
14
91005-P80-003 BEARING ATAPER, 40X80X17 (NTN) 00000000 - 1005225 |
91005-P80-003 |
US $27.88 |
||
|
15
|
15
91101-P80-008
Bearing
|
91101-P80-008 |
— | ||
|
16
|
16
91205-PL3-A02
Oil seal
|
91205-PL3-A02 |
— | ||
| replacement | |||||
|
16
|
16
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
17
|
17
91215-689-013 Oil seal14X25X16 |
91215-689-013 |
from US $8.78 |
||
|
18
|
18
91216-PH8-003 Oil seal28X41X7 (ARAI) |
91216-PH8-003 |
US $9.32 |
||
| replacement | |||||
|
18
|
18
91216-PH8-005 Oil seal28X41X7 (NOK) |
91216-PH8-005 |
from US $9.80 |
||
|
18
|
18
91216-PH8-005 Oil seal28X41X7 (NOK) |
91216-PH8-005 |
from US $9.80 |
||
|
19
|
19
92201-08016-0H BoltHEX., 8X16 |
92201-08016-0H |
US $0.52 |
||
|
20
|
20
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
41451-PL3-B00
Shim l
1005226 - |
41451-PL3-B00 |
— | ||
|
22
|
22
41446-PL3-B00
Shim f
1005226 - |
41446-PL3-B00 |
— | ||
|
22
|
22
41441-PL3-B00
Shim a
1005226 - |
41441-PL3-B00 |
— | ||
|
22
|
22
41453-PL3-B00
Shim n
1005226 - |
41453-PL3-B00 |
— | ||
|
22
|
22
41448-PL3-B00
Shim h
1005226 - |
41448-PL3-B00 |
— | ||
|
22
|
22
41443-PL3-B00
Shim c
1005226 - |
41443-PL3-B00 |
— | ||
|
22
|
22
41455-PL3-B00
Shim q
1005226 - |
41455-PL3-B00 |
— | ||
|
22
|
22
41450-PL3-B00
Shim k
1005226 - |
41450-PL3-B00 |
— | ||
|
22
|
22
41445-PL3-B00
Shim e
1005226 - |
41445-PL3-B00 |
— | ||
|
22
|
22
41457-PL3-B00
Shim s
1005226 - |
41457-PL3-B00 |
— | ||
|
22
|
22
41452-PL3-B00
Shim m
1005226 - |
41452-PL3-B00 |
— | ||
|
22
|
22
41447-PL3-B00
Shim g
1005226 - |
41447-PL3-B00 |
— | ||
|
22
|
22
41442-PL3-B00
Shim b
1005226 - |
41442-PL3-B00 |
— | ||
|
22
|
22
41454-PL3-B00
Shim p
1005226 - |
41454-PL3-B00 |
— | ||
|
22
|
22
41449-PL3-B00
Shim j
1005226 - |
41449-PL3-B00 |
— | ||
|
22
|
22
41444-PL3-B00
Shim d
1005226 - |
41444-PL3-B00 |
— | ||
|
22
|
22
41456-PL3-B00
Shim r
1005226 - |
41456-PL3-B00 |
— | ||
