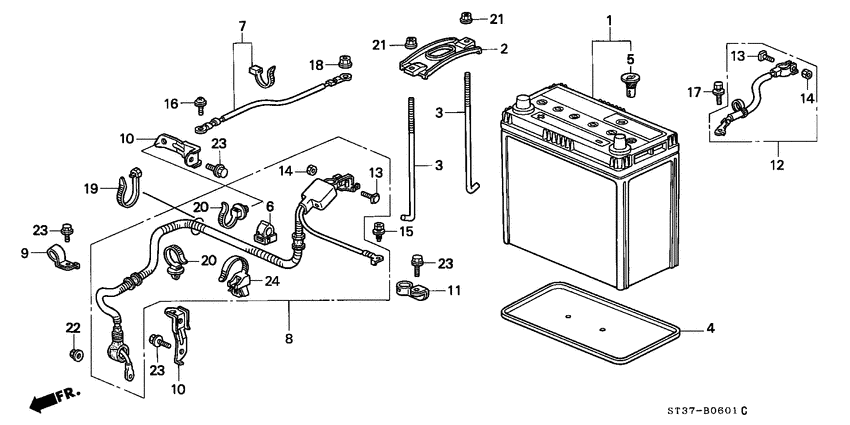

Battery (RH) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (dealer set)
- +
- headlight washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-ST3-E11
Battery assy
|
31500-ST3-E11 |
— | ||
|
2
|
2
31512-SR3-000 PlateBATTERY SETTING |
31512-SR3-000 |
US $11.84 |
||
|
3
|
3
31513-SR3-000 BoltBATTERY SETTING |
31513-SR3-000 |
from US $3.55 |
||
|
4
|
4
31521-ST3-000
Box
|
31521-ST3-000 |
— | ||
|
5
|
5
31542-ST3-E01 PlugVENT (MF) (YUASA) |
31542-ST3-E01 |
US $4.34 |
||
|
6
|
6
32115-P64-003 HolderCORRUGATED (DARK BLUE) (10MM) |
32115-P64-003 |
US $2.38 |
||
|
7
|
7
32230-ST3-E01
Cord
|
32230-ST3-E01 |
— | ||
|
8
|
8
32410-ST3-E30
Cable assy
|
32410-ST3-E30 |
— | ||
|
11
|
11
32416-SR3-000
Clamp c
|
32416-SR3-000 |
— | ||
|
12
|
12
32600-ST3-E00
Cable assy
|
32600-ST3-E00 |
— | ||
|
13
|
13
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
14
|
14
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
15
|
15
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
16
|
16
90153-SA5-900 Screw-washer5X9 |
90153-SA5-900 |
US $2.80 |
||
|
17
|
17
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
18
|
18
90337-SJ4-003 NutA.L.B. |
90337-SJ4-003 |
US $1.63 |
||
|
19
|
19
90656-PB1-003 BandOIL HOSE |
90656-PB1-003 |
US $2.10 |
||
|
20
|
20
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
22
|
22
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
24
|
24
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
