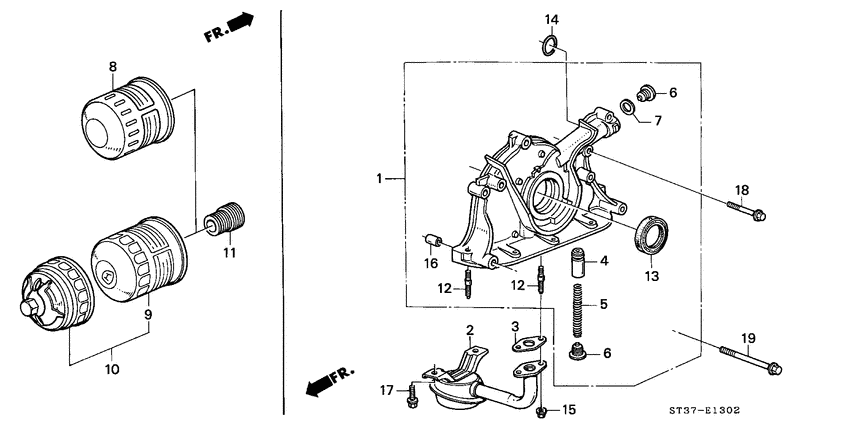

Oil pump/oil strainer (DOHC VTEC) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-PR4-A03 Pump assy.OIL |
15100-PR4-A03 |
from US $221.99 |
||
|
2
|
2
15220-P72-000
Strainer comp.
|
15220-P72-000 |
— | ||
|
3
|
3
15221-PW0-S01 PackingOIL STRAINER |
15221-PW0-S01 |
from US $2.88 |
||
|
4
|
4
15231-PE0-000 ValveRELIEF |
15231-PE0-000 |
from US $5.93 |
||
|
5
|
5
15232-PG6-000 SpringRELIEF VALVE |
15232-PG6-000 |
from US $2.65 |
||
|
6
|
6
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
7
|
7
15234-PC6-000 WasherSEALING, 18MM |
15234-PC6-000 |
US $9.67 |
||
|
8
|
8
15400-PH1-F03 CartridgeOIL FILTER (LABINAL-PURFLUX) |
15400-PH1-F03 |
US $16 |
||
|
9
|
9
15400-PR3-004 CartridgeOIL FILTER (TOYO ROKI) |
15400-PR3-004 |
US $9.84 |
||
| replacement | |||||
|
9
|
9
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
9
|
9
15400-PR3-405 CartridgeOIL FILTER (TOYO ROKI) |
15400-PR3-405 |
US $18.72 |
||
|
9
|
9
15400-PR3-003
Cartridge
|
15400-PR3-003 |
— | ||
| replacement | |||||
|
9
|
9
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
10
|
10
15400-PR3-305
Cartridge set
|
15400-PR3-305 |
— | ||
| replacement | |||||
|
10
|
10
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
10
|
10
15400-PR3-406
Cartridge set
|
15400-PR3-406 |
— | ||
| replacement | |||||
|
10
|
10
15400-RTA-003 OIL FILTER (MAHLE TENNEX) |
15400-RTA-003 |
US $16.32 |
||
|
11
|
11
90015-PH1-013 HolderOIL FILTER |
90015-PH1-013 |
from US $3.26 |
||
|
12
|
12
90042-PR3-000 BoltSTUD, 6X28 |
90042-PR3-000 |
US $2.28 |
||
|
13
|
13
91212-PR4-A01
Oil seal
|
91212-PR4-A01 |
— | ||
| replacement | |||||
|
13
|
13
91212-PR3-003 Oil seal38X50X7.4 (NOK) |
91212-PR3-003 |
from US $10.93 |
||
|
14
|
14
91308-PH9-000 O-ring8.8X1.9 |
91308-PH9-000 |
from US $2.15 |
||
| replacement | |||||
|
14
|
14
91302-GE0-000 O-ring (8.8x1.9) |
91302-GE0-000 |
from US $2.25 |
||
|
15
|
15
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
16
|
16
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
17
|
17
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
18
|
18
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
19
|
19
95701-080-700-8 BoltFLANGE, 8X70 |
95701-080-700-8 |
from US $0.89 |
||
