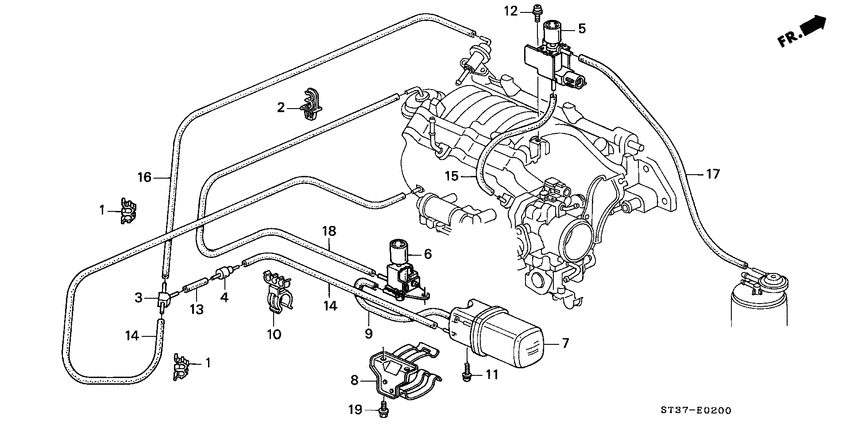

Vacuum tank/tubing Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
2
|
2
17363-PM3-000 ClampTUBE, 7.5X2 |
17363-PM3-000 |
US $2.17 |
||
|
3
|
3
36010-PE0-004 JointTHREE WAY |
36010-PE0-004 |
US $6.30 |
||
|
4
|
4
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
5
|
5
36162-P2Y-G01
Valve assy.
|
36162-P2Y-G01 |
— | ||
|
6
|
6
36163-P72-003
Valve assy.
|
36163-P72-003 |
— | ||
|
7
|
7
36361-P72-000 Tank comp.VACUUM |
36361-P72-000 |
from US $21.06 |
||
|
8
|
8
36362-P72-010
Bracket comp.
|
36362-P72-010 |
— | ||
|
9
|
9
36363-P72-000
Tube
|
36363-P72-000 |
— | ||
|
10
|
10
36364-P72-003
Clamp
|
36364-P72-003 |
— | ||
|
11
|
11
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
12
|
12
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
13
|
13
95005-350-351-C Tube3.5X35 (95005-35001-10M) |
95005-350-351-C |
US $0.89 |
||
|
14
|
14
95005-351-001-C Tube3.5X100 (95005-35001-10M) |
95005-351-001-C |
US $1.18 |
||
|
15
|
15
95005-351-651-C Tube3.5X165 (95005-35001-10M) |
95005-351-651-C |
US $2.37 |
||
|
16
|
16
95005-353-951-0 Tube3.5X395 (95005-35001-10M) |
95005-353-951-0 |
US $4.14 |
||
|
17
|
17
36165-P9K-E00
Tube
|
36165-P9K-E00 |
— | ||
|
18
|
18
95005-354-501-D
Tube
|
95005-354-501-D |
— | ||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
