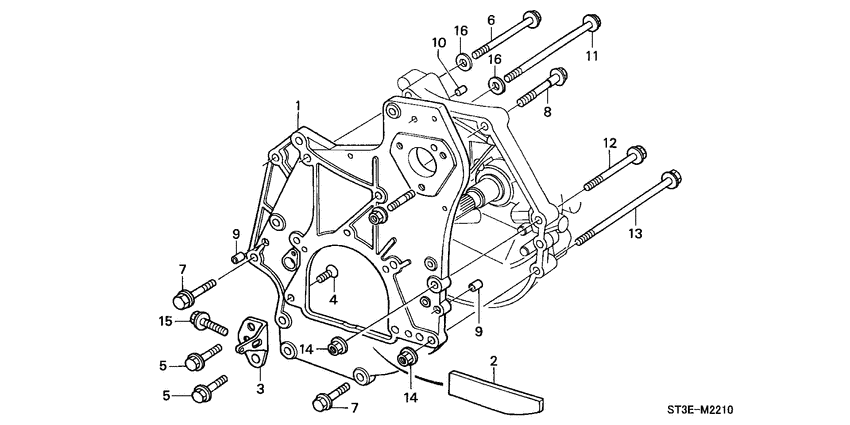

Adaptor (DIESEL) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- 2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21340-P5T-020
Plate
|
21340-P5T-020 |
— | ||
|
2
|
2
21341-P5T-000
Pad
|
21341-P5T-000 |
— | ||
|
3
|
3
21342-P9M-000
Bracket
|
21342-P9M-000 |
— | ||
|
4
|
4
90001-P5T-000
Bolt
|
90001-P5T-000 |
— | ||
|
5
|
5
90001-P9M-000
Bolt
|
90001-P9M-000 |
— | ||
|
6
|
6
90003-P5T-000
Bolt
|
90003-P5T-000 |
— | ||
|
7
|
7
90005-P5T-000
Bolt
|
90005-P5T-000 |
— | ||
|
8
|
8
90006-P5T-000
Bolt
|
90006-P5T-000 |
— | ||
|
9
|
9
90701-P5T-000
Dowel pin
|
90701-P5T-000 |
— | ||
|
10
|
10
90703-P5T-000
Dowel pin
|
90703-P5T-000 |
— | ||
|
11
|
11
90021-P5T-000
Bolt
|
90021-P5T-000 |
— | ||
|
12
|
12
99FB1-12171
Bolt
|
99FB1-12171 |
— | ||
|
13
|
13
99FB1-12271
Bolt
|
99FB1-12271 |
— | ||
|
14
|
14
99FN1-12041
Nut
|
99FN1-12041 |
— | ||
|
15
|
15
99FS1-12251
Bolt
|
99FS1-12251 |
— | ||
|
16
|
16
99WA1-12081
Washer
|
99WA1-12081 |
— |
