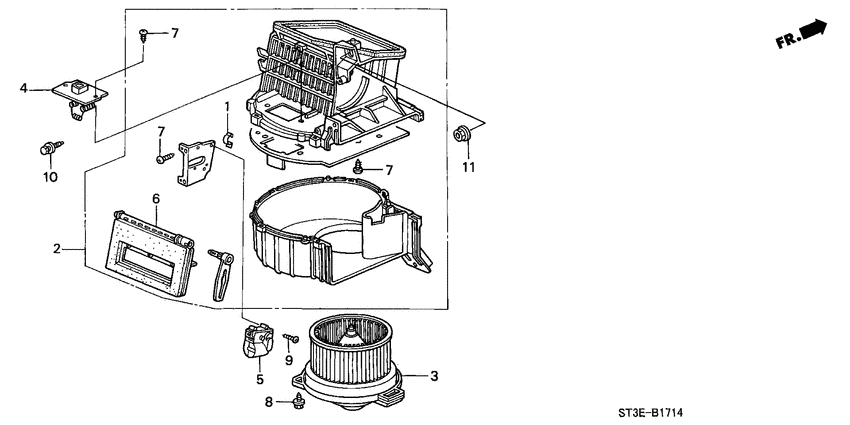

Heater blower (RH; 2) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- power window
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79194-ST3-E01
Clip
|
79194-ST3-E01 |
— | ||
|
2
|
2
79305-ST3-E11
Blower sub assy.
|
79305-ST3-E11 |
— | ||
|
3
|
3
79310-ST3-E01
Motor assy.
|
79310-ST3-E01 |
— | ||
|
4
|
4
79330-ST3-E01
Resistor
|
79330-ST3-E01 |
— | ||
|
5
|
5
79350-ST3-E01
Motor assy.
|
79350-ST3-E01 |
— | ||
|
6
|
6
79371-ST3-E11
Flap assy.
|
79371-ST3-E11 |
— | ||
|
7
|
7
90101-ST3-E01
Screw
|
90101-ST3-E01 |
— | ||
|
8
|
8
90102-ST3-E01
Screw
|
90102-ST3-E01 |
— | ||
|
9
|
9
90103-ST3-E01
Screw
|
90103-ST3-E01 |
— | ||
|
10
|
10
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
11
|
11
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
