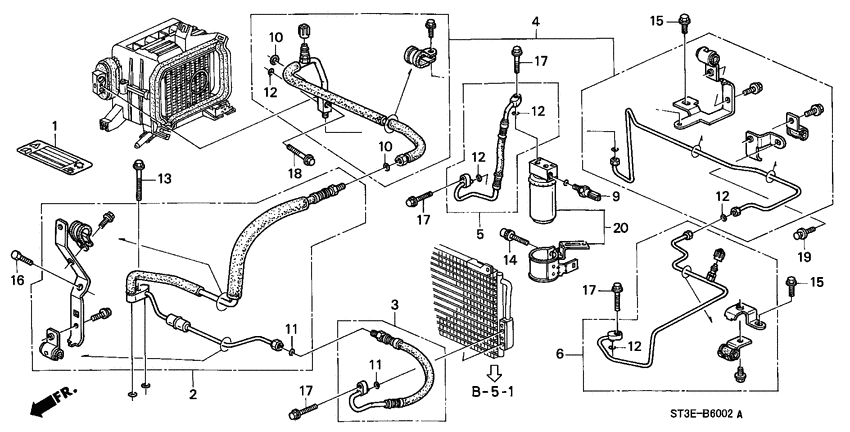

Air conditioner (DIESEL; HOSES/PIPES; LH) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD 9
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80050-S74-D00
Label
|
80050-S74-D00 |
— | ||
|
2
|
2
80312-S74-D00
Hose comp.
|
80312-S74-D00 |
— | ||
|
3
|
3
80315-S74-D00
Hose comp.
|
80315-S74-D00 |
— | ||
|
4
|
4
80323-S74-D60
Hose comp.
|
80323-S74-D60 |
— | ||
|
5
|
5
80331-S74-D00
Pipe
|
80331-S74-D00 |
— | ||
|
6
|
6
80341-S74-D00
Pipe
|
80341-S74-D00 |
— | ||
|
9
|
9
80440-S74-D00
Switch assy
|
80440-S74-D00 |
— | ||
|
10
|
10
80871-S74-D00
O-ring
|
80871-S74-D00 |
— | ||
|
11
|
11
80872-S74-D00
O-ring
|
80872-S74-D00 |
— | ||
|
12
|
12
80873-S74-D00
O-ring
|
80873-S74-D00 |
— | ||
|
13
|
13
90152-S74-D00
Bolt
|
90152-S74-D00 |
— | ||
|
14
|
14
99FS1-06125
Bolt
|
99FS1-06125 |
— | ||
|
15
|
15
99FS1-06127
Bolt
|
99FS1-06127 |
— | ||
|
16
|
16
99FS1-06167
Bolt
|
99FS1-06167 |
— | ||
|
17
|
17
99FS1-06207
Bolt
|
99FS1-06207 |
— | ||
|
18
|
18
99FS1-06307
Bolt
|
99FS1-06307 |
— | ||
|
19
|
19
99SN1-06161
Bolt-washer
|
99SN1-06161 |
— | ||
|
20
|
20
80350-S74-D00
Receiver assy
|
80350-S74-D00 |
— |
