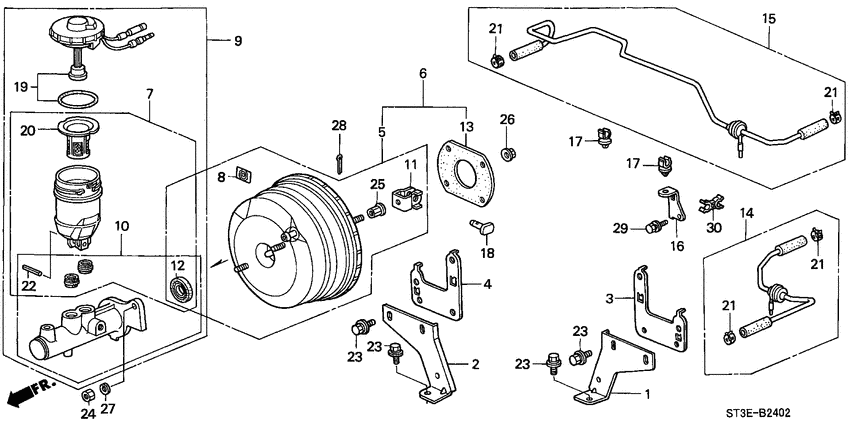

Brake master cylinder/ master power (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD 9
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
46001-S74-G00
Bracket
|
46001-S74-G00 |
— | ||
|
4
|
4
46005-S74-E50
Stiffener
|
46005-S74-E50 |
— | ||
|
5
|
5
46012-SN7-010
Power set
|
46012-SN7-010 |
— | ||
|
7
|
7
46016-ST3-E00
Tank set
|
46016-ST3-E00 |
— | ||
|
9
|
9
46100-SN7-013
Cylinder assy.
|
46100-SN7-013 |
— | ||
|
10
|
10
46110-SN7-E01
Cylinder comp
|
46110-SN7-E01 |
— | ||
|
11
|
11
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
12
|
12
46185-ST3-003
Seal
|
46185-ST3-003 |
— | ||
|
13
|
13
46191-SN7-000
Packing
|
46191-SN7-000 |
— | ||
|
15
|
15
46402-S74-G00
Tube assy
|
46402-S74-G00 |
— | ||
|
16
|
16
46406-S74-E00
Stay
|
46406-S74-E00 |
— | ||
|
17
|
17
46407-S74-E00
Clip
|
46407-S74-E00 |
— | ||
|
18
|
18
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
19
|
19
46662-ST3-003
Cap assy.
|
46662-ST3-003 |
— | ||
|
20
|
20
46666-ST3-003
Filter
|
46666-ST3-003 |
— | ||
|
21
|
21
90651-S37-E00
Clip
|
90651-S37-E00 |
— | ||
|
22
|
22
90751-ST3-003
Pin
|
90751-ST3-003 |
— | ||
|
23
|
23
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
24
|
24
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
24
|
24
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
25
|
25
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
26
|
26
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
27
|
27
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
28
|
28
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
28
|
28
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
29
|
29
99FS1-05107
Screw
|
99FS1-05107 |
— | ||
|
30
|
30
90651-S74-E00
Clip
|
90651-S74-E00 |
— | ||
