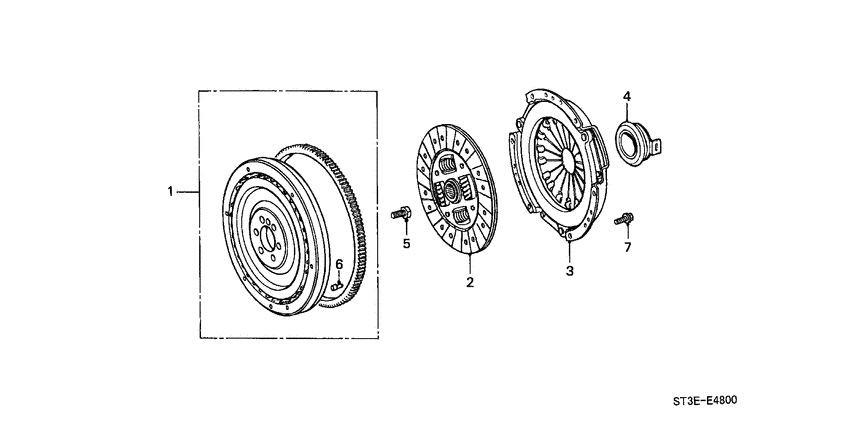

Clutch (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-P5T-000
Flywheel comp.
|
22100-P5T-000 |
— | ||
|
2
|
2
22200-P5T-000
Disk comp
|
22200-P5T-000 |
— | ||
|
3
|
3
22300-P5T-000
Disk comp
|
22300-P5T-000 |
— | ||
|
4
|
4
22810-P6A-000
Bearing
|
22810-P6A-000 |
— | ||
|
5
|
5
90011-P5T-G00
Bolt
|
90011-P5T-G00 |
— | ||
|
6
|
6
90702-P5T-000
Dowel pin
|
90702-P5T-000 |
— | ||
|
7
|
7
99FS1-08205
Bolt
|
99FS1-08205 |
— |
