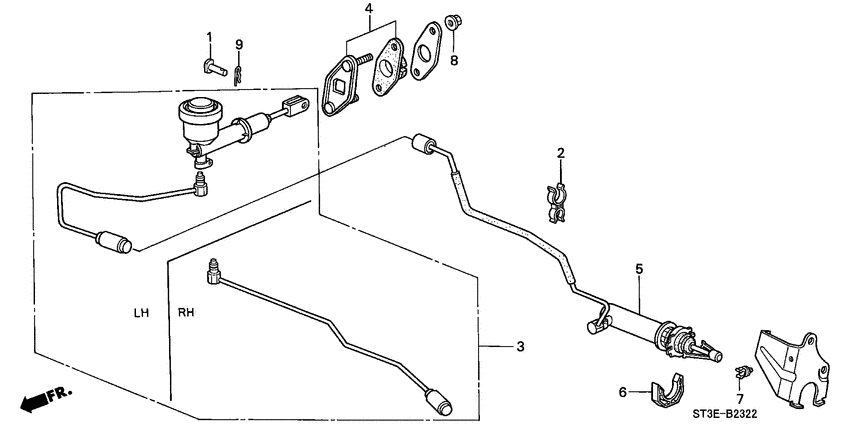

Clutch master cylinder (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- key less entry
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46912-SD4-000 PinCLUTCH PEDAL |
46912-SD4-000 |
US $5.18 |
||
|
2
|
2
46915-S74-D00
Clip
|
46915-S74-D00 |
— | ||
|
3
|
3
46920-S74-D72
Cylinder assy.
|
46920-S74-D72 |
— | ||
|
4
|
4
46921-S74-D00
Plate
|
46921-S74-D00 |
— | ||
|
5
|
5
46930-S74-D01
Cylinder assy.
|
46930-S74-D01 |
— | ||
|
6
|
6
46944-S74-D00
Clip
|
46944-S74-D00 |
— | ||
|
7
|
7
90666-S74-D00
Clip
|
90666-S74-D00 |
— | ||
|
8
|
8
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
9
|
9
94201-20250 PinSPLIT, 2.0X25 |
94201-20250 |
from US $0.44 |
||
| replacement | |||||
|
9
|
9
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
