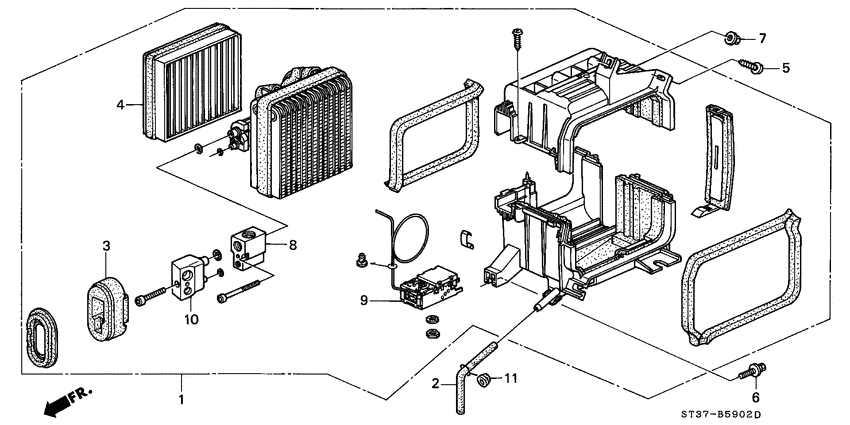

Air conditioner (COOLING UNIT; DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N11N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80200-S74-D20
Cooling unit
|
80200-S74-D20 |
— | ||
|
2
|
2
80271-S74-D00
Hose
|
80271-S74-D00 |
— | ||
|
3
|
3
80288-S74-D00
Seal
|
80288-S74-D00 |
— | ||
|
4
|
4
80290-S74-D00
Filter assy
|
80290-S74-D00 |
— | ||
|
5
|
5
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
6
|
6
90156-SH3-000 Bolt-washer6X24 |
90156-SH3-000 |
US $2.52 |
||
|
7
|
7
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
from US $1.05 |
||
|
8
|
8
80220-S74-D00
Valve assy.
|
80220-S74-D00 |
— | ||
|
9
|
9
80430-S74-D00
Thermistor
|
80430-S74-D00 |
— | ||
|
10
|
10
80465-S74-D00
Adapter
|
80465-S74-D00 |
— | ||
|
11
|
11
80272-S74-D00
Grommet
|
80272-S74-D00 |
— |
