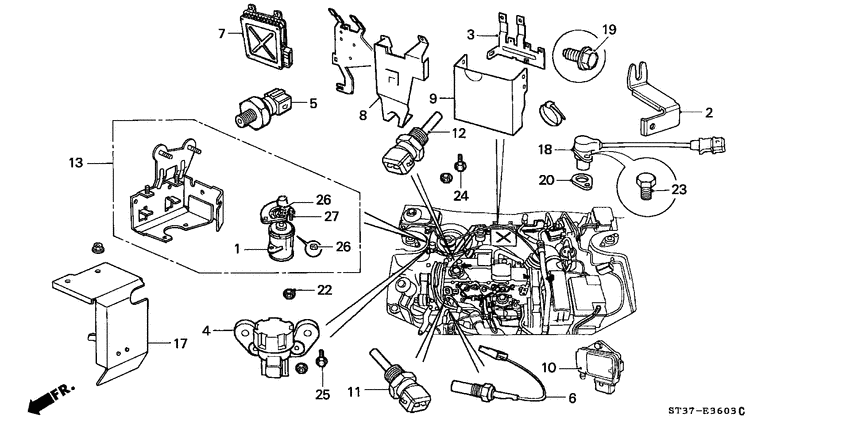

Sensor (DIESEL; 2) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2N11N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17815-S37-G00
Pot
|
17815-S37-G00 |
— | ||
|
2
|
2
32741-P5T-G00
Stay
|
32741-P5T-G00 |
— | ||
|
3
|
3
36033-PFT-E00
Stay
|
36033-PFT-E00 |
— | ||
|
4
|
4
36166-P5T-G00
Valve assy.
|
36166-P5T-G00 |
— | ||
|
5
|
5
37240-P5T-G00
Switch
|
37240-P5T-G00 |
— | ||
|
6
|
6
37776-P5T-G00
Sensor
|
37776-P5T-G00 |
— | ||
|
7
|
7
37820-PFT-E00
Control module
|
37820-PFT-E00 |
— | ||
|
8
|
8
37821-PFT-E00
Stay comp
|
37821-PFT-E00 |
— | ||
|
9
|
9
37822-PFT-E00
Cover
|
37822-PFT-E00 |
— | ||
|
10
|
10
37830-P5T-G00
Sensor assy
|
37830-P5T-G00 |
— | ||
|
11
|
11
37870-P5T-G00
Sensor
|
37870-P5T-G00 |
— | ||
|
12
|
12
37880-P5T-G00
Sensor
|
37880-P5T-G00 |
— | ||
|
13
|
13
37970-PFT-E00
Sensor assy
|
37970-PFT-E00 |
— | ||
|
17
|
17
37996-PFT-E00
Cover
|
37996-PFT-E00 |
— | ||
|
18
|
18
78420-P5T-G00
Sensor assy
|
78420-P5T-G00 |
— | ||
|
19
|
19
90001-PFT-E00
Bolt-washer
|
90001-PFT-E00 |
— | ||
|
20
|
20
90410-P5T-G00
Spacer
|
90410-P5T-G00 |
— | ||
|
22
|
22
99FN1-08045
Nut
|
99FN1-08045 |
— | ||
|
23
|
23
99FS1-06125
Bolt
|
99FS1-06125 |
— | ||
|
24
|
24
99FS1-06165
Bolt
|
99FS1-06165 |
— | ||
|
25
|
25
99FS1-06255
Bolt
|
99FS1-06255 |
— | ||
|
26
|
26
99NZ1-06041
Nut
|
99NZ1-06041 |
— | ||
|
27
|
27
99RES-060-210-0
Bolt
|
99RES-060-210-0 |
— |
