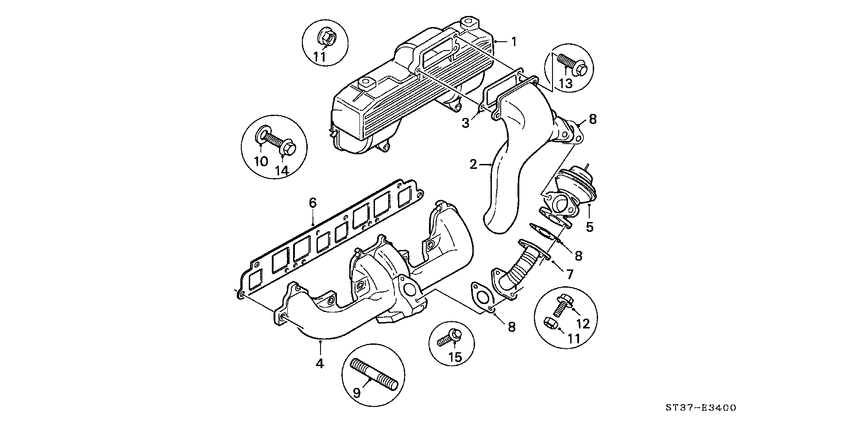

Manifold (DIESEL; 1) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17000-P9M-E00
Manifold a
|
17000-P9M-E00 |
— | ||
|
2
|
2
17010-P9M-E00
Manifold b
|
17010-P9M-E00 |
— | ||
|
3
|
3
17120-P9M-E00
Gasket
|
17120-P9M-E00 |
— | ||
|
4
|
4
18000-P5T-G00
Manifold
|
18000-P5T-G00 |
— | ||
|
5
|
5
18110-P5T-G00
Valve assy.
|
18110-P5T-G00 |
— | ||
|
6
|
6
18115-P5T-G00
Gasket
|
18115-P5T-G00 |
— | ||
|
7
|
7
18717-P9M-E00
Pipe comp
|
18717-P9M-E00 |
— | ||
|
8
|
8
18721-P5T-G00
Gasket b
|
18721-P5T-G00 |
— | ||
|
9
|
9
90012-P5T-G00
Bolt
|
90012-P5T-G00 |
— | ||
|
10
|
10
90406-P5T-G00
Washer
|
90406-P5T-G00 |
— | ||
|
11
|
11
99FN1-08047
Nut
|
99FN1-08047 |
— | ||
|
12
|
12
99FS1-08257
Bolt
|
99FS1-08257 |
— | ||
|
13
|
13
99FS1-08305
Bolt
|
99FS1-08305 |
— | ||
|
14
|
14
99FT1-083-01M-X
Bolt
|
99FT1-083-01M-X |
— | ||
|
15
|
15
99SS1-08251
Bolt
|
99SS1-08251 |
— |
