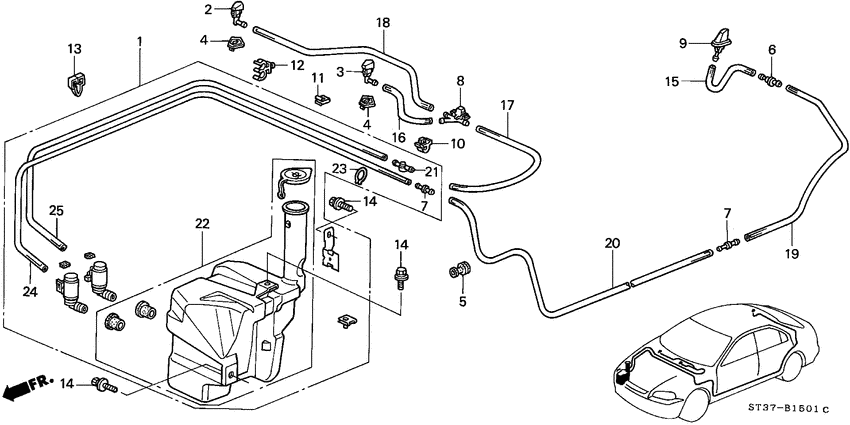

Windshield washer (DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
76810-SN7-G05
Nozzle
|
76810-SN7-G05 |
— | ||
|
3
|
3
76815-SN7-G05
Nozzle
|
76815-SN7-G05 |
— | ||
|
4
|
4
76816-SK4-E00
Adapter
|
76816-SK4-E00 |
— | ||
|
5
|
5
76821-ST3-E01
Grommet
|
76821-ST3-E01 |
— | ||
|
6
|
6
76826-ST3-E01
Valve
|
76826-ST3-E01 |
— | ||
|
7
|
7
76829-ST3-E01
Joint
|
76829-ST3-E01 |
— | ||
|
8
|
8
76830-SN7-G05
Joint y
|
76830-SN7-G05 |
— | ||
|
9
|
9
76850-ST3-E01
Nozzle assy.
|
76850-ST3-E01 |
— | ||
|
10
|
10
90652-SN7-G00
Clip
|
90652-SN7-G00 |
— | ||
|
11
|
11
90653-S74-000
Clip
|
90653-S74-000 |
— | ||
|
12
|
12
90654-S74-000
Clip
|
90654-S74-000 |
— | ||
|
13
|
13
91506-S74-000
Clip
|
91506-S74-000 |
— | ||
|
14
|
14
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
15
|
15
95003-070-103-1
Tube
|
95003-070-103-1 |
— | ||
| replacement | |||||
|
15
|
15
95003-070-1031S
Tube
|
95003-070-1031S |
— | ||
|
16
|
16
95003-070-267-0
Tube
|
95003-070-267-0 |
— | ||
|
17
|
17
95003-070-557-1
Tube
|
95003-070-557-1 |
— | ||
|
18
|
18
95003-070-707-0 TubeVINYL, 4X7X700 (95003-07001-70M) |
95003-070-707-0 |
US $1.48 |
||
|
19
|
19
95003-071-953-1 TubeVINYL, 4X7X1950 (95003-07003-60M) |
95003-071-953-1 |
US $4 |
||
|
20
|
20
95003-072-453-1
Tube
|
95003-072-453-1 |
— | ||
|
21
|
21
76825-SG9-730
Valve
|
76825-SG9-730 |
— | ||
|
22
|
22
76841-S74-E00
Tank comp.
|
76841-S74-E00 |
— | ||
|
23
|
23
90683-S74-E00
Clip
|
90683-S74-E00 |
— | ||
|
24
|
24
95003-072-303-1 TubeVINYL, 4X7X2300 (95003-07003-60M) |
95003-072-303-1 |
US $5.33 |
||
|
25
|
25
95003-072-307-0
Tube
|
95003-072-307-0 |
— | ||
