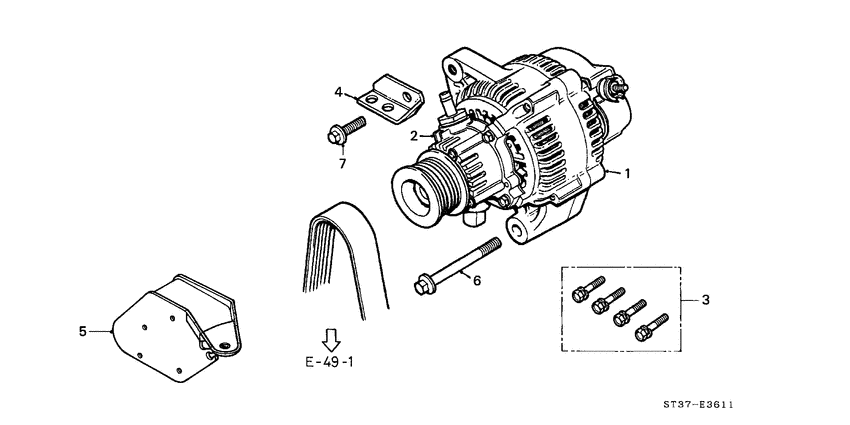

Alternator (DIESEL; AIR CONDITIONER) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-P5T-G20
Alternator assy.
|
31100-P5T-G20 |
— | ||
|
2
|
2
31160-P5T-G20
Pump assy.
|
31160-P5T-G20 |
— | ||
|
3
|
3
31161-P5T-G00
Bolt set
|
31161-P5T-G00 |
— | ||
|
4
|
4
31165-P5T-G20
Bracket
|
31165-P5T-G20 |
— | ||
|
5
|
5
74103-S74-E02
Guard
|
74103-S74-E02 |
— | ||
|
6
|
6
99FB1-10221
Bolt
|
99FB1-10221 |
— | ||
|
7
|
7
99FS1-08167
Bolt
|
99FS1-08167 |
— |
