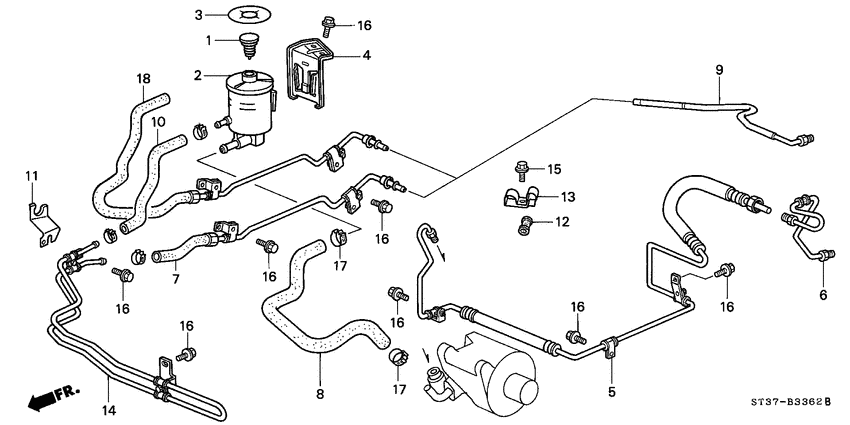

P.s. line (LH; DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53697-SK3-E01
Cap
|
53697-SK3-E01 |
— | ||
|
2
|
2
53701-S74-G00
Tank comp.
|
53701-S74-G00 |
— | ||
|
3
|
3
53702-S74-G00
Label
|
53702-S74-G00 |
— | ||
|
4
|
4
53711-S74-G00
Bracket
|
53711-S74-G00 |
— | ||
|
5
|
5
53713-S74-G71
Hose comp.
|
53713-S74-G71 |
— | ||
|
6
|
6
53714-S74-G00
Hose comp.
|
53714-S74-G00 |
— | ||
|
8
|
8
53731-S74-G71
Tube
|
53731-S74-G71 |
— | ||
|
9
|
9
53732-S74-G00
Hose
|
53732-S74-G00 |
— | ||
|
11
|
11
53734-S74-G00
Stay
|
53734-S74-G00 |
— | ||
|
12
|
12
53738-SK3-E00
Rubber a
|
53738-SK3-E00 |
— | ||
|
13
|
13
53744-SK3-E00
Clamp d
|
53744-SK3-E00 |
— | ||
|
15
|
15
90107-S74-G00
Bolt
|
90107-S74-G00 |
— | ||
|
16
|
16
99FS1-06107
Bolt
|
99FS1-06107 |
— | ||
|
17
|
17
91405-S74-G00
Clamp
|
91405-S74-G00 |
— | ||
|
18
|
18
53730-S74-G02
Pipe
|
53730-S74-G02 |
— |
