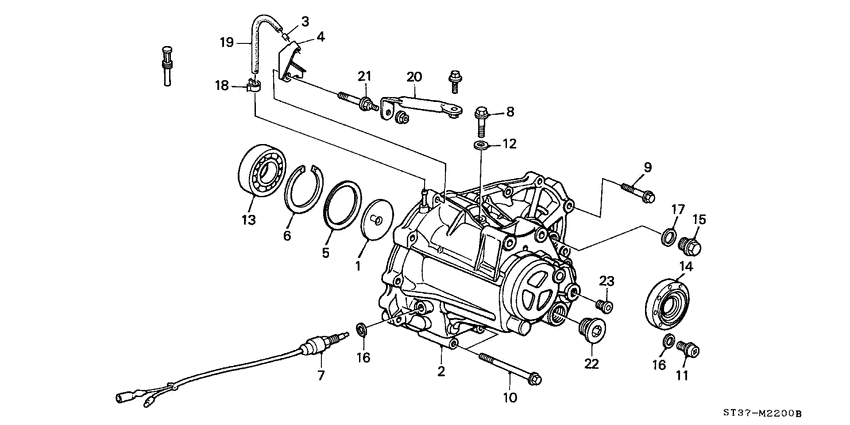

Transmission case (DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21104-PG1-K30
Plate m
|
21104-PG1-K30 |
— | ||
|
2
|
2
21200-P6A-F00
Case comp.
|
21200-P6A-F00 |
— | ||
|
3
|
3
21321-PG1-L60
Plug
|
21321-PG1-L60 |
— | ||
|
4
|
4
21399-PG1-L60
Clamp
|
21399-PG1-L60 |
— | ||
|
5
|
5
23927-PG1-L60
Washer
|
23927-PG1-L60 |
— | ||
|
6
|
6
23944-PG1-L60
Shim n
|
23944-PG1-L60 |
— | ||
|
6
|
6
23939-PG1-L60
Shim i
|
23939-PG1-L60 |
— | ||
|
6
|
6
23934-PG1-L60
Shim d
|
23934-PG1-L60 |
— | ||
|
6
|
6
23941-PG1-L60
Shim k
|
23941-PG1-L60 |
— | ||
|
6
|
6
23936-PG1-L60
Shim f
|
23936-PG1-L60 |
— | ||
|
6
|
6
23931-PG1-L60
Shim a
|
23931-PG1-L60 |
— | ||
|
6
|
6
23943-PG1-L60
Shim m
|
23943-PG1-L60 |
— | ||
|
6
|
6
23938-PG1-L60
Shim h
|
23938-PG1-L60 |
— | ||
|
6
|
6
23933-PG1-L60
Shim c
|
23933-PG1-L60 |
— | ||
|
6
|
6
23940-PG1-L60
Shim j
|
23940-PG1-L60 |
— | ||
|
6
|
6
23935-PG1-L60
Shim e
|
23935-PG1-L60 |
— | ||
|
6
|
6
23942-PG1-L60
Shim l
|
23942-PG1-L60 |
— | ||
|
6
|
6
23937-PG1-L60
Shim g
|
23937-PG1-L60 |
— | ||
|
6
|
6
23932-PG1-L60
Shim b
|
23932-PG1-L60 |
— | ||
|
7
|
7
35600-PG1-L60
Switch assy
|
35600-PG1-L60 |
— | ||
|
8
|
8
90012-PG1-L60
Bolt
|
90012-PG1-L60 |
— | ||
|
9
|
9
90013-PG1-L60
Bolt
|
90013-PG1-L60 |
— | ||
|
10
|
10
90014-PG1-L60
Bolt
|
90014-PG1-L60 |
— | ||
|
11
|
11
90080-PG1-L60
Bolt
|
90080-PG1-L60 |
— | ||
|
12
|
12
90401-PG1-L60
Washer
|
90401-PG1-L60 |
— | ||
|
13
|
13
91004-PG1-L60
Bearing
|
91004-PG1-L60 |
— | ||
|
14
|
14
91206-P6A-010
Oil seal
|
91206-P6A-010 |
— | ||
|
15
|
15
92800-20000 BoltDRAIN PLUG, 20MM |
92800-20000 |
from US $1.85 |
||
|
16
|
16
90402-P5T-G00
Washer
|
90402-P5T-G00 |
— | ||
|
17
|
17
94109-20000 WasherDRAIN PLUG, 20MM |
94109-20000 |
from US $0.43 |
||
|
18
|
18
95002-408-500-8 ClampTUBE (D8.5) |
95002-408-500-8 |
from US $0.78 |
||
|
19
|
19
95005-451-502-0 Tube4.5X150 (95005-45001-20M) |
95005-451-502-0 |
US $1.26 |
||
|
20
|
20
21216-P6A-000
Strut
|
21216-P6A-000 |
— | ||
|
21
|
21
99UAM-07805
Bolt
|
99UAM-07805 |
— |
