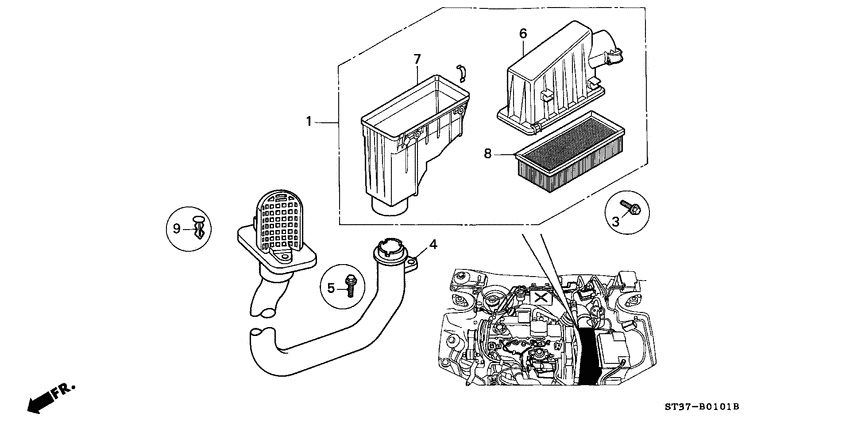

Air cleaner (DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17200-P9M-E00
Cleaner assy
|
17200-P9M-E00 |
— | ||
|
3
|
3
99FS1-06165
Bolt
|
99FS1-06165 |
— | ||
|
4
|
4
17242-P9M-E00
Tube
|
17242-P9M-E00 |
— | ||
|
5
|
5
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
6
|
6
17210-P9M-E00
Lid
|
17210-P9M-E00 |
— | ||
|
7
|
7
17240-P9M-E00
Body
|
17240-P9M-E00 |
— | ||
|
8
|
8
17220-P5T-G00
Element assy.
|
17220-P5T-G00 |
— |
