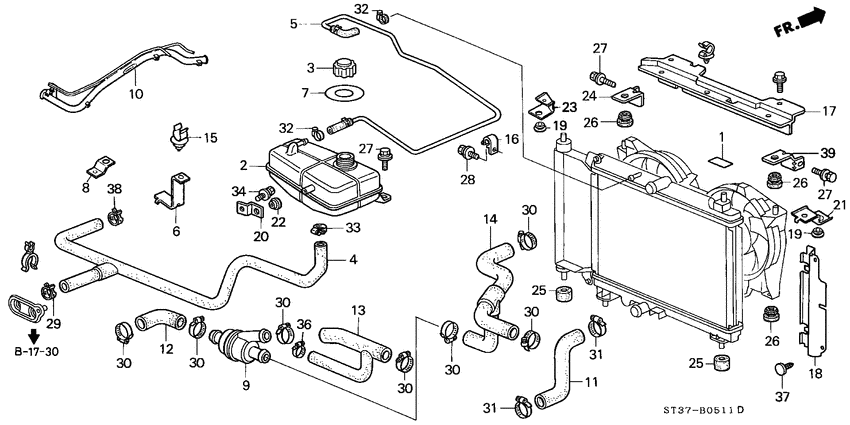

Radiator hose (DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19018-P42-G00
Mark
|
19018-P42-G00 |
— | ||
|
2
|
2
19101-P9M-E00
Tank comp.
|
19101-P9M-E00 |
— | ||
|
3
|
3
19102-P5T-G00
Cap
|
19102-P5T-G00 |
— | ||
|
4
|
4
19103-P9M-E01
Hose
|
19103-P9M-E01 |
— | ||
|
5
|
5
19104-P9M-E00
Tube
|
19104-P9M-E00 |
— | ||
|
6
|
6
19108-P9M-E01
Stay
|
19108-P9M-E01 |
— | ||
|
7
|
7
19110-SK4-E00
Label
|
19110-SK4-E00 |
— | ||
|
8
|
8
19114-P9M-E00
Stay
|
19114-P9M-E00 |
— | ||
|
9
|
9
19302-P5T-G01
Thermostat
|
19302-P5T-G01 |
— | ||
|
10
|
10
19500-P9M-E00
Pipe comp
|
19500-P9M-E00 |
— | ||
|
11
|
11
19502-P9M-E00
Hose
|
19502-P9M-E00 |
— | ||
|
12
|
12
19504-P5T-G00
Hose
|
19504-P5T-G00 |
— | ||
|
13
|
13
19505-P5T-G01
Hose
|
19505-P5T-G01 |
— | ||
|
14
|
14
19506-P9M-E00
Hose
|
19506-P9M-E00 |
— | ||
|
15
|
15
19519-P9M-E00
Clamp
|
19519-P9M-E00 |
— | ||
|
16
|
16
32175-P5T-G00
Clip
|
32175-P5T-G00 |
— | ||
|
17
|
17
74148-S74-E00
Panel
|
74148-S74-E00 |
— | ||
|
18
|
18
74149-S74-E00
Panel
|
74149-S74-E00 |
— | ||
|
19
|
19
74173-SK3-E00 CushionRADIATOR MOUNTING UPPER |
74173-SK3-E00 |
US $4.13 |
||
|
20
|
20
74175-S74-G00
Bracket
|
74175-S74-G00 |
— | ||
|
21
|
21
74176-S74-E00
Bracket
|
74176-S74-E00 |
— | ||
|
22
|
22
74177-S74-G00
Grommet
|
74177-S74-G00 |
— | ||
|
23
|
23
74178-S74-E00
Bracket
|
74178-S74-E00 |
— | ||
|
27
|
27
90146-SA7-000
Bolt-washer
|
90146-SA7-000 |
— | ||
| replacement | |||||
|
27
|
27
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
29
|
29
90601-P9M-E00
Clamp
|
90601-P9M-E00 |
— | ||
|
30
|
30
90607-P5T-G00
Clip
|
90607-P5T-G00 |
— | ||
|
31
|
31
99CN1-00508
Clip
|
99CN1-00508 |
— | ||
|
32
|
32
99CN1-00168
Clip
|
99CN1-00168 |
— | ||
|
33
|
33
99CN1-00258
Clamp
|
99CN1-00258 |
— | ||
|
34
|
34
99FS1-06125
Bolt
|
99FS1-06125 |
— | ||
|
36
|
36
90609-P5T-G00
Clip
|
90609-P5T-G00 |
— | ||
|
37
|
37
91560-SK3-E00
Clip
|
91560-SK3-E00 |
— | ||
|
38
|
38
99CN1-00308
Clip
|
99CN1-00308 |
— | ||
