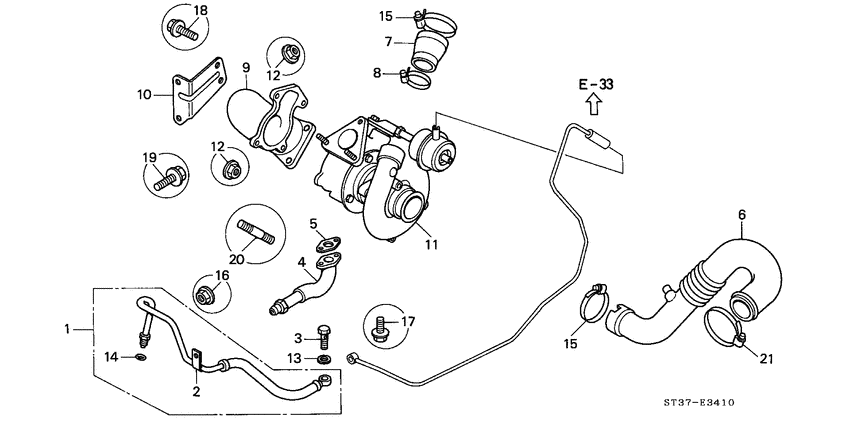

Turbocharger (DIESEL; 1) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15580-P5T-G00
Hose assy
|
15580-P5T-G00 |
— | ||
|
2
|
2
15581-P9M-E00
Hose comp.
|
15581-P9M-E00 |
— | ||
|
3
|
3
15585-P9M-E00
Bolt
|
15585-P9M-E00 |
— | ||
|
4
|
4
15590-P9M-E00
Pipe comp
|
15590-P9M-E00 |
— | ||
|
5
|
5
15596-P5T-G00
Gasket
|
15596-P5T-G00 |
— | ||
|
6
|
6
17227-P5T-G01
Hose
|
17227-P5T-G01 |
— | ||
|
7
|
7
17228-P9M-E00
Hose
|
17228-P9M-E00 |
— | ||
|
8
|
8
90607-P5T-G00
Clip
|
90607-P5T-G00 |
— | ||
|
9
|
9
18131-P9M-E00
Pipe
|
18131-P9M-E00 |
— | ||
|
10
|
10
18135-P9M-E00
Bracket
|
18135-P9M-E00 |
— | ||
|
11
|
11
18900-P9M-E00
Turbocharger assy
|
18900-P9M-E00 |
— | ||
|
12
|
12
90204-P5T-G00
Nut
|
90204-P5T-G00 |
— | ||
|
13
|
13
90408-P5T-G00
Washer
|
90408-P5T-G00 |
— | ||
|
14
|
14
91304-P5T-G00
O-ring
|
91304-P5T-G00 |
— | ||
|
15
|
15
99CN1-00608
Clip
|
99CN1-00608 |
— | ||
|
16
|
16
99FN1-06047
Nut
|
99FN1-06047 |
— | ||
|
17
|
17
99FS1-06127
Bolt
|
99FS1-06127 |
— | ||
|
18
|
18
99FS1-08161
Bolt
|
99FS1-08161 |
— | ||
|
19
|
19
99FS1-10201
Bolt
|
99FS1-10201 |
— | ||
|
20
|
20
99TE1-10051
Bolt
|
99TE1-10051 |
— | ||
|
21
|
21
99CN1-00908
Clip
|
99CN1-00908 |
— |
