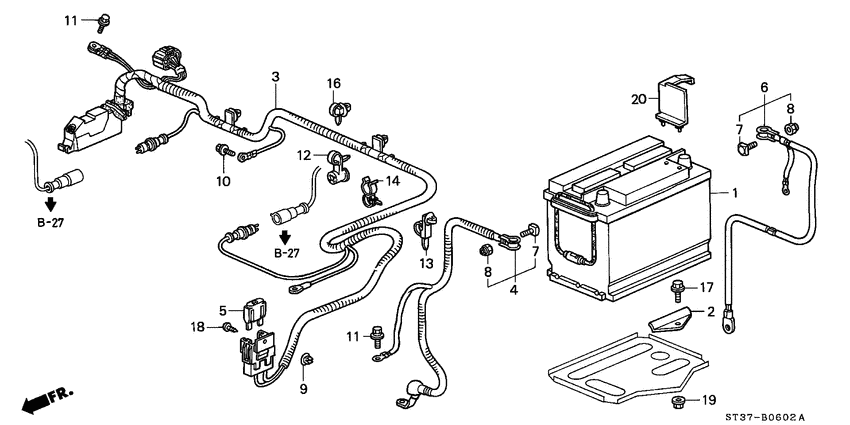

Battery (DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-S37-D00
Battery assy
|
31500-S37-D00 |
— | ||
|
2
|
2
31512-S37-D00
Clamp
|
31512-S37-D00 |
— | ||
|
3
|
3
32230-S74-G00
Sub harness
|
32230-S74-G00 |
— | ||
|
4
|
4
32410-S74-D00
Cable assy
|
32410-S74-D00 |
— | ||
|
5
|
5
32508-S74-D00
Fuse
|
32508-S74-D00 |
— | ||
|
6
|
6
32600-S74-D00
Cable assy
|
32600-S74-D00 |
— | ||
|
7
|
7
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
8
|
8
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
9
|
9
62316-611-003
Grommet
|
62316-611-003 |
— | ||
|
10
|
10
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
11
|
11
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
12
|
12
91531-S74-E00
Clip
|
91531-S74-E00 |
— | ||
|
13
|
13
91553-S74-D00
Clip
|
91553-S74-D00 |
— | ||
|
14
|
14
91554-S74-D00
Clamp
|
91554-S74-D00 |
— | ||
|
16
|
16
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
17
|
17
93401-080-200-8 Bolt-washer8X20 |
93401-080-200-8 |
from US $0.67 |
||
|
18
|
18
93903-24220 ScrewTAPPING, 4X10 |
93903-24220 |
from US $0.37 |
||
|
19
|
19
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
20
|
20
31510-S37-D00
Cover
|
31510-S37-D00 |
— |
