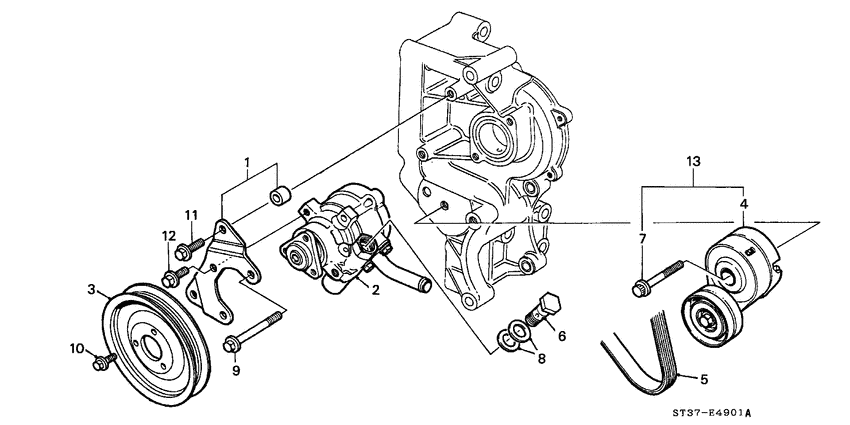

P.s. pump (DIESEL; AIR CONDITIONER) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06569-P5T-G20
Bracket kit
|
06569-P5T-G20 |
— | ||
|
2
|
2
56100-P9M-G70
Pump assy.
|
56100-P9M-G70 |
— | ||
|
3
|
3
56483-P5T-G20
Pulley
|
56483-P5T-G20 |
— | ||
|
4
|
4
56900-P5T-G03
Tensioner comp
|
56900-P5T-G03 |
— | ||
|
5
|
5
56992-P5T-G20
Belt
|
56992-P5T-G20 |
— | ||
|
6
|
6
90015-P5T-G01
Bolt
|
90015-P5T-G01 |
— | ||
|
7
|
7
90020-P5T-G00
Bolt
|
90020-P5T-G00 |
— | ||
|
8
|
8
90409-P5T-G01
Washer
|
90409-P5T-G01 |
— | ||
|
9
|
9
99FB1-08161
Bolt
|
99FB1-08161 |
— | ||
|
10
|
10
99FS1-06121
Bolt
|
99FS1-06121 |
— | ||
|
11
|
11
99FS1-08161
Bolt
|
99FS1-08161 |
— | ||
|
12
|
12
99FS1-08301
Bolt
|
99FS1-08301 |
— |
