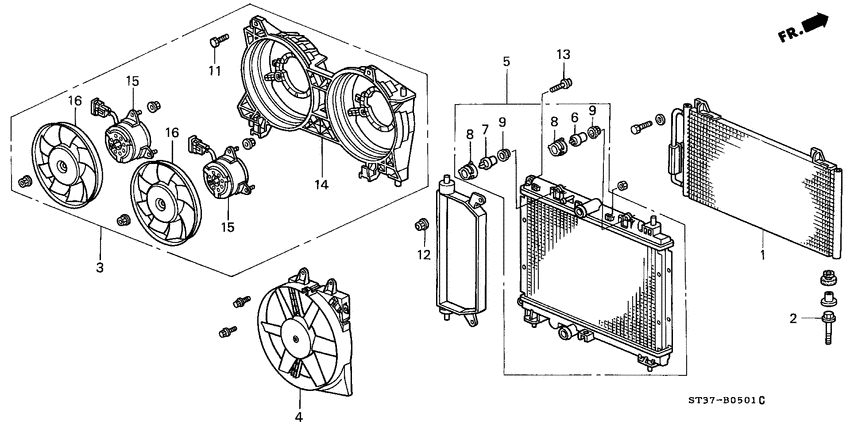

Radiator (DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R13N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80110-S74-D00
Condenser comp.
|
80110-S74-D00 |
— | ||
|
2
|
2
99FB1-06095
Bolt
|
99FB1-06095 |
— | ||
|
3
|
3
80160-S74-D00
Shroud assy.
|
80160-S74-D00 |
— | ||
|
5
|
5
19010-P9M-E00
Radiator comp.
|
19010-P9M-E00 |
— | ||
|
6
|
6
37773-P5T-G00
Switch
|
37773-P5T-G00 |
— | ||
|
11
|
11
99FS1-06201
Bolt
|
99FS1-06201 |
— | ||
|
12
|
12
90042-P9M-E00
Nut
|
90042-P9M-E00 |
— | ||
|
13
|
13
90041-P9M-E00
Bolt
|
90041-P9M-E00 |
— | ||
|
14
|
14
80161-S74-D00
Shroud
|
80161-S74-D00 |
— | ||
|
15
|
15
80162-S74-D00
Motor assy.
|
80162-S74-D00 |
— | ||
|
16
|
16
80163-S74-D00
Fan assy
|
80163-S74-D00 |
— |
