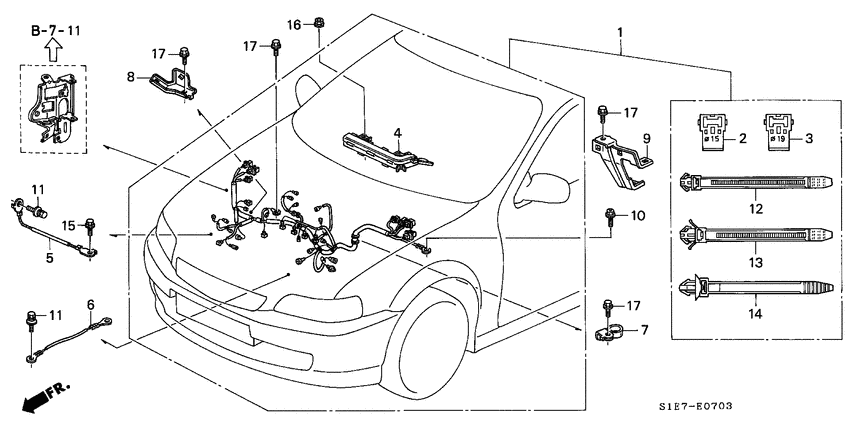

Engine wire harness (DOHC; RH) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- B18C
- transmission
- 5MT
- Number of doors
- 5
- grade
- 1.8VTI
- abs
- +
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- air conditioner (manual)
- +
- colored outer handle
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32110-P9K-E00
Harness
|
32110-P9K-E00 |
— | ||
|
2
|
2
32117-P65-003 HolderCORRUGATED(DARK BLUE) (15MM) |
32117-P65-003 |
US $2.38 |
||
|
3
|
3
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
4
|
4
32127-P05-A00
Holder comp
|
32127-P05-A00 |
— | ||
|
5
|
5
32601-ST3-E00
Cable assy
|
32601-ST3-E00 |
— | ||
|
6
|
6
32610-SR3-900
Cable
|
32610-SR3-900 |
— | ||
|
7
|
7
32744-P05-A01
Clamp d
|
32744-P05-A01 |
— | ||
|
8
|
8
32746-P72-000
Stay f
|
32746-P72-000 |
— | ||
|
9
|
9
32754-P72-000
Stay d
|
32754-P72-000 |
— | ||
|
10
|
10
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
11
|
11
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
12
|
12
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
13
|
13
91507-P01-003 Clip bHARNESS BAND (DARK BROWN) (129.4MM) |
91507-P01-003 |
from US $2.25 |
||
|
14
|
14
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
15
|
15
92101-06008-0H
Bolt
|
92101-06008-0H |
— | ||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
