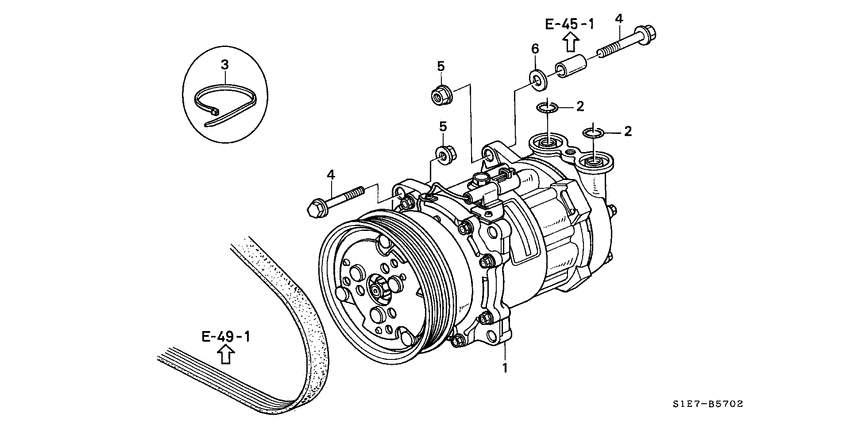

Air conditioner (COMPRESSOR; DIESEL) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- front ashtray in black
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38800-P5T-G20
Compressor assy
|
38800-P5T-G20 |
— | ||
|
2
|
2
38805-P5T-G20
O-ring
|
38805-P5T-G20 |
— | ||
|
3
|
3
38809-P5T-G20
Tie
|
38809-P5T-G20 |
— | ||
|
4
|
4
99FB1-10111
Bolt
|
99FB1-10111 |
— | ||
|
5
|
5
99FN1-10041
Nut
|
99FN1-10041 |
— | ||
|
6
|
6
99WA1-10061
Washer
|
99WA1-10061 |
— |
