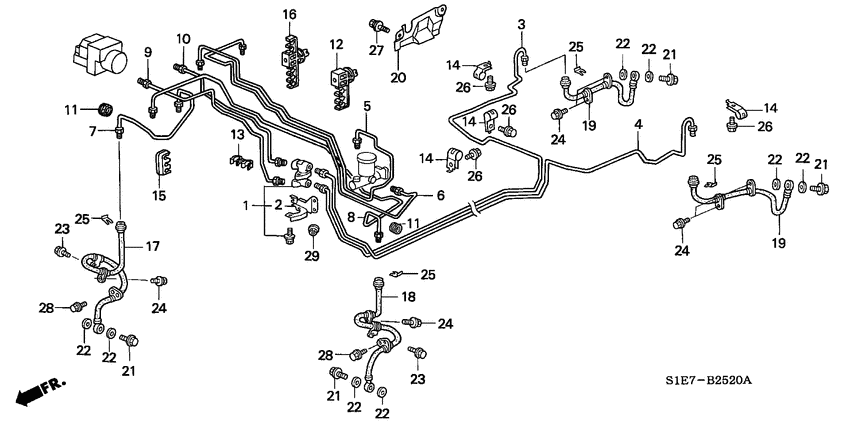

Brake lines (ABS; LH; DIESEL) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- front ashtray in black
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-S1H-E52
Valve assy.
|
46210-S1H-E52 |
— | ||
|
2
|
2
46215-S1H-E00
Bracket
|
46215-S1H-E00 |
— | ||
|
3
|
3
46330-S74-E30
Pipe comp. c
|
46330-S74-E30 |
— | ||
|
4
|
4
46340-S74-E30
Pipe comp. d
|
46340-S74-E30 |
— | ||
|
5
|
5
46374-S74-G51
Pipe comp. u
|
46374-S74-G51 |
— | ||
|
6
|
6
46375-S74-G51
Pipe comp. v
|
46375-S74-G51 |
— | ||
|
7
|
7
46376-S74-G53
Pipe comp. w
|
46376-S74-G53 |
— | ||
|
8
|
8
46377-S74-G52
Pipe comp. x
|
46377-S74-G52 |
— | ||
|
9
|
9
46378-S74-G51
Pipe comp. y
|
46378-S74-G51 |
— | ||
|
10
|
10
46379-S74-G51
Pipe comp. z
|
46379-S74-G51 |
— | ||
|
11
|
11
46380-SB0-000 Grommet aBRAKE PIPE (BLACK) |
46380-SB0-000 |
US $2.03 |
||
|
12
|
12
46392-S74-E00
Clip
|
46392-S74-E00 |
— | ||
|
13
|
13
46393-S74-E00
Clip
|
46393-S74-E00 |
— | ||
|
14
|
14
46394-S74-E00
Clip
|
46394-S74-E00 |
— | ||
|
15
|
15
46396-S37-000
Clip
|
46396-S37-000 |
— | ||
|
16
|
16
46396-S74-E00
Clip
|
46396-S74-E00 |
— | ||
|
17
|
17
46410-ST3-E02
Hose
|
46410-ST3-E02 |
— | ||
|
18
|
18
46411-ST3-E02
Hose
|
46411-ST3-E02 |
— | ||
|
19
|
19
46430-ST3-E01
Hose
|
46430-ST3-E01 |
— | ||
|
20
|
20
46457-ST3-E00
Guard
|
46457-ST3-E00 |
— | ||
|
21
|
21
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.33 |
||
|
22
|
22
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
23
|
23
90105-SB0-003 Bolt-washer8X16 |
90105-SB0-003 |
US $0.67 |
||
|
24
|
24
90105-SD9-003 Bolt-washer8X20 |
90105-SD9-003 |
US $0.67 |
||
|
25
|
25
90651-SN7-003 ClipBRAKE HOSE |
90651-SN7-003 |
US $1.89 |
||
|
26
|
26
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
27
|
27
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
28
|
28
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
29
|
29
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
