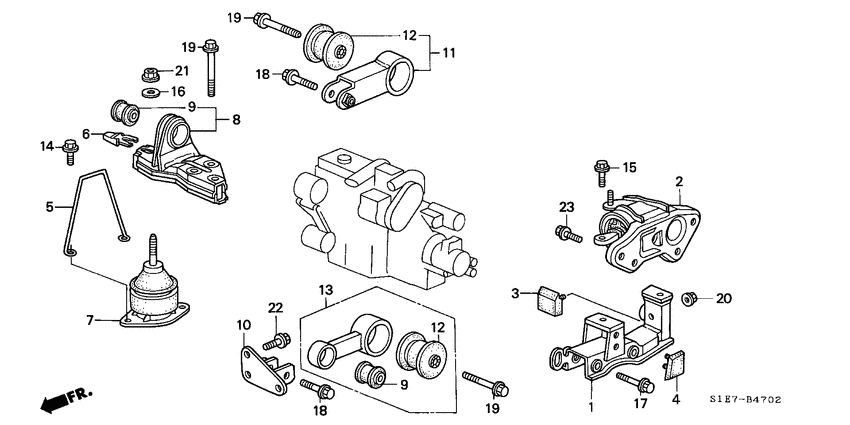

Engine mounts (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11950-P9M-E00
Bracket
|
11950-P9M-E00 |
— | ||
|
2
|
2
50805-S74-E00
Rubber
|
50805-S74-E00 |
— | ||
|
3
|
3
50806-S74-E00
Stopper a
|
50806-S74-E00 |
— | ||
|
4
|
4
50807-S74-E00
Stopper b
|
50807-S74-E00 |
— | ||
|
5
|
5
50818-S74-E00
Rod
|
50818-S74-E00 |
— | ||
|
6
|
6
50819-S74-E00
Stopper
|
50819-S74-E00 |
— | ||
|
7
|
7
50820-S74-E01
Rubber assy.
|
50820-S74-E01 |
— | ||
|
8
|
8
50821-S74-E00
Bracket assy
|
50821-S74-E00 |
— | ||
|
9
|
9
50823-S74-E00
Bush
|
50823-S74-E00 |
— | ||
|
10
|
10
50827-S74-E00
Bracket
|
50827-S74-E00 |
— | ||
|
11
|
11
50830-S74-E00
Rod assy
|
50830-S74-E00 |
— | ||
|
12
|
12
50832-S74-E00
Bush
|
50832-S74-E00 |
— | ||
|
13
|
13
50835-S74-E00
Rod
|
50835-S74-E00 |
— | ||
|
14
|
14
90164-S74-E00
Bolt
|
90164-S74-E00 |
— | ||
|
15
|
15
90165-S74-E00
Bolt
|
90165-S74-E00 |
— | ||
|
16
|
16
90505-SK3-E00
Washer
|
90505-SK3-E00 |
— | ||
|
17
|
17
99FC1-10147
Bolt
|
99FC1-10147 |
— | ||
|
18
|
18
99FC1-12121
Bolt
|
99FC1-12121 |
— | ||
|
19
|
19
99FC1-12161
Bolt
|
99FC1-12161 |
— | ||
|
20
|
20
99FN1-06047
Nut
|
99FN1-06047 |
— | ||
|
21
|
21
99FN1-12047
Nut
|
99FN1-12047 |
— | ||
|
22
|
22
99FS1-12351
Screw
|
99FS1-12351 |
— | ||
|
23
|
23
99FS2-10207
Screw
|
99FS2-10207 |
— |
