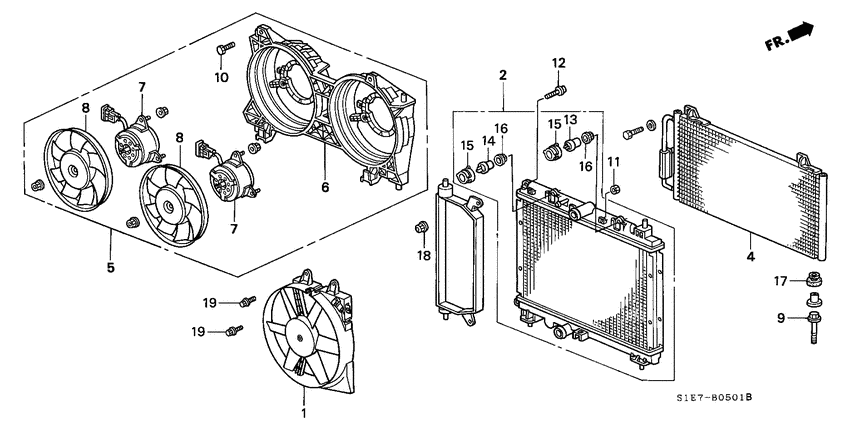

Radiator (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N23N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KE
- right-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19005-P5T-G00
Shroud assy.
|
19005-P5T-G00 |
— | ||
|
2
|
2
19010-PFT-E00
Radiator comp.
|
19010-PFT-E00 |
— | ||
|
4
|
4
80110-S74-D00
Condenser comp.
|
80110-S74-D00 |
— | ||
|
5
|
5
80160-S74-D00
Shroud assy.
|
80160-S74-D00 |
— | ||
|
6
|
6
80161-S74-D00
Shroud
|
80161-S74-D00 |
— | ||
|
7
|
7
80162-S74-D00
Motor assy.
|
80162-S74-D00 |
— | ||
|
8
|
8
80163-S74-D00
Fan assy
|
80163-S74-D00 |
— | ||
|
9
|
9
99FB1-06095
Bolt
|
99FB1-06095 |
— | ||
|
10
|
10
99FS1-06201
Bolt
|
99FS1-06201 |
— | ||
|
11
|
11
99FX1-08047
Nut
|
99FX1-08047 |
— | ||
|
12
|
12
99PYG-100-710-X
Bolt
|
99PYG-100-710-X |
— | ||
|
13
|
13
37773-P5T-G00
Switch
|
37773-P5T-G00 |
— | ||
|
14
|
14
37773-P5T-G10
Switch
|
37773-P5T-G10 |
— | ||
|
15
|
15
37774-P5T-G00
Clip
|
37774-P5T-G00 |
— | ||
|
16
|
16
37775-P5T-G00
Bush
|
37775-P5T-G00 |
— | ||
|
17
|
17
99EAP-8708X
Rubber
|
99EAP-8708X |
— | ||
|
18
|
18
99FN1-08047
Nut
|
99FN1-08047 |
— | ||
|
19
|
19
99FS1-06121
Bolt
|
99FS1-06121 |
— |
