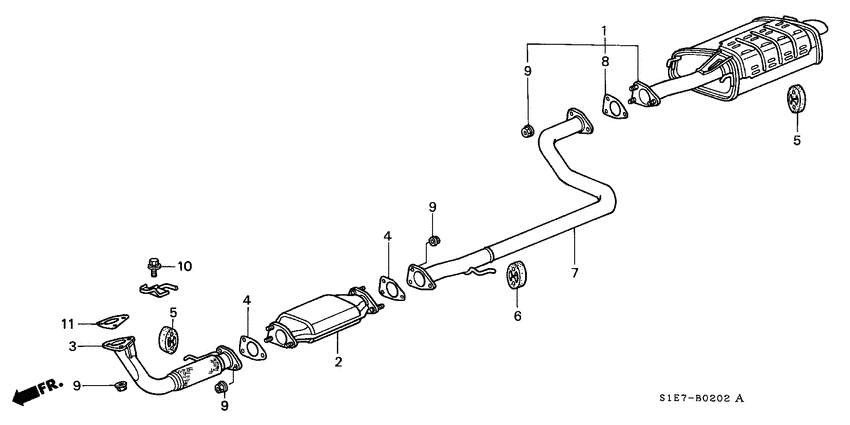

Exhaust pipe (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N22N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- srs driver & passenger
- +
- intercooler
- +
- security alarm
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-S1H-E00
Silencer set
|
18030-S1H-E00 |
— | ||
|
2
|
2
18160-P5T-G00
Converter comp.
|
18160-P5T-G00 |
— | ||
|
3
|
3
18210-S74-G00
Pipe a
|
18210-S74-G00 |
— | ||
|
4
|
4
18393-S37-G00
Gasket
|
18393-S37-G00 |
— | ||
|
5
|
5
18215-S74-G00
Rubber
|
18215-S74-G00 |
— | ||
|
6
|
6
18215-S74-G10
Rubber
|
18215-S74-G10 |
— | ||
|
7
|
7
18220-S74-G00
Pipe b
|
18220-S74-G00 |
— | ||
|
8
|
8
18212-S37-G00
Gasket
|
18212-S37-G00 |
— | ||
|
9
|
9
90212-S37-G00
Nut
|
90212-S37-G00 |
— | ||
|
10
|
10
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
10
|
10
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
11
|
11
18212-S37-G00
Gasket
|
18212-S37-G00 |
— | ||
