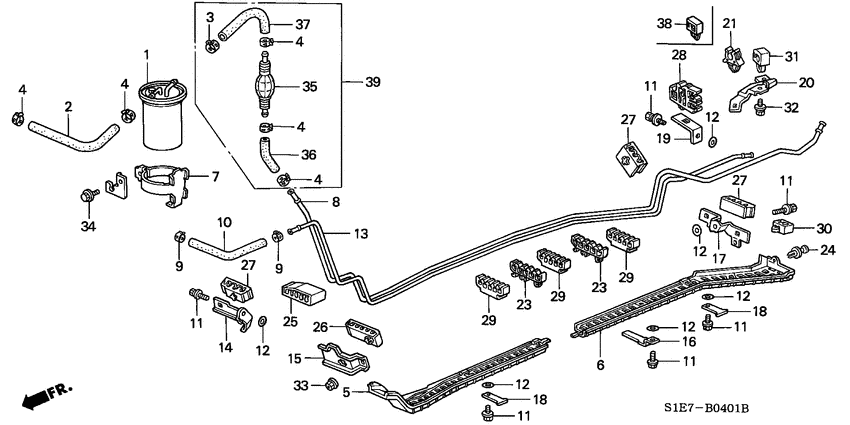

Fuel pipe (DIESEL) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N22N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- abs
- +
- area code
- KG
- left-hand drive
- +
- power window
- +
- srs driver & passenger
- +
- intercooler
- +
- security alarm
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16901-S37-E30
Filter
|
16901-S37-E30 |
— | ||
|
2
|
2
16903-S74-E33
Hose b
|
16903-S74-E33 |
— | ||
|
3
|
3
16906-S37-E30
Clip
|
16906-S37-E30 |
— | ||
|
4
|
4
16908-S74-E30
Clip
|
16908-S74-E30 |
— | ||
|
5
|
5
16913-ST3-E00
Cover
|
16913-ST3-E00 |
— | ||
|
6
|
6
16914-ST3-E00
Cover
|
16914-ST3-E00 |
— | ||
|
7
|
7
16918-S74-E31
Bracket
|
16918-S74-E31 |
— | ||
|
8
|
8
17700-S74-E30
Pipe comp
|
17700-S74-E30 |
— | ||
|
9
|
9
17722-S74-E30
Clamp
|
17722-S74-E30 |
— | ||
|
10
|
10
17723-S74-E30
Hose
|
17723-S74-E30 |
— | ||
|
11
|
11
17738-S74-E31
Bolt-washer
|
17738-S74-E31 |
— | ||
|
12
|
12
17739-S74-E30
Washer
|
17739-S74-E30 |
— | ||
|
13
|
13
17740-S74-E30
Pipe
|
17740-S74-E30 |
— | ||
|
14
|
14
17761-ST3-E30
Stay a
|
17761-ST3-E30 |
— | ||
|
15
|
15
17762-ST3-E00
Stay b
|
17762-ST3-E00 |
— | ||
|
16
|
16
17763-ST3-E00
Stay c
|
17763-ST3-E00 |
— | ||
|
17
|
17
17764-ST3-E00
Stay d
|
17764-ST3-E00 |
— | ||
|
18
|
18
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
19
|
19
17766-ST3-E00
Stay f
|
17766-ST3-E00 |
— | ||
|
20
|
20
17768-ST3-E00
Stay h
|
17768-ST3-E00 |
— | ||
|
21
|
21
46391-S74-E30
Clip
|
46391-S74-E30 |
— | ||
|
23
|
23
91592-ST3-E31
Clamp h
|
91592-ST3-E31 |
— | ||
|
24
|
24
91593-SK3-E00
Clip
|
91593-SK3-E00 |
— | ||
|
25
|
25
91593-ST3-E31
Clamp g
|
91593-ST3-E31 |
— | ||
|
26
|
26
91594-ST3-E31
Clamp f
|
91594-ST3-E31 |
— | ||
|
27
|
27
91596-ST3-E31
Clamp b
|
91596-ST3-E31 |
— | ||
|
28
|
28
91597-ST3-E31
Clamp c
|
91597-ST3-E31 |
— | ||
|
29
|
29
91598-ST3-E31
Clamp d
|
91598-ST3-E31 |
— | ||
|
30
|
30
91599-ST3-E01
Clip
|
91599-ST3-E01 |
— | ||
|
31
|
31
91599-ST3-E31
Clamp e
|
91599-ST3-E31 |
— | ||
|
32
|
32
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
33
|
33
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
34
|
34
99FS1-06255
Bolt
|
99FS1-06255 |
— | ||
|
35
|
35
16902-S37-E30
Primer
|
16902-S37-E30 |
— | ||
|
36
|
36
16903-S74-E02
Hose a
|
16903-S74-E02 |
— | ||
|
37
|
37
16904-S74-E30
Hose
|
16904-S74-E30 |
— | ||
|
38
|
38
46394-ST3-E01
Clip
|
46394-ST3-E01 |
— |
