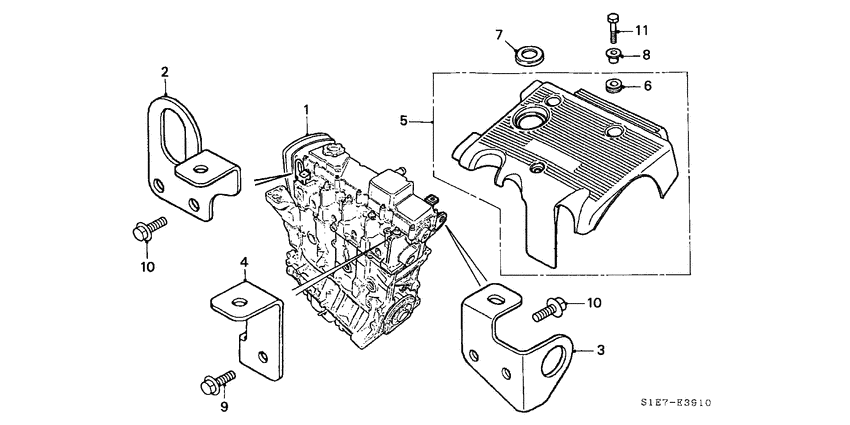

Engine assy./ acoustic cover (DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10001-P5T-305
Engine assy
|
10001-P5T-305 |
— | ||
|
2
|
2
11911-P5T-G00
Hanger a
|
11911-P5T-G00 |
— | ||
|
3
|
3
11912-P5T-G00
Hanger b
|
11912-P5T-G00 |
— | ||
|
4
|
4
11915-P5T-G00
Stay
|
11915-P5T-G00 |
— | ||
|
5
|
5
17112-PFT-E00
Cover assy.
|
17112-PFT-E00 |
— | ||
|
6
|
6
17115-P5T-G00
Grommet
|
17115-P5T-G00 |
— | ||
|
7
|
7
17117-P5T-G00
Seal
|
17117-P5T-G00 |
— | ||
|
8
|
8
90501-P5T-G00
Insert
|
90501-P5T-G00 |
— | ||
|
9
|
9
99FS1-06127
Bolt
|
99FS1-06127 |
— | ||
|
10
|
10
99SH1-081-61P-X
Bolt
|
99SH1-081-61P-X |
— | ||
|
11
|
11
99SN1-06165
Bolt
|
99SN1-06165 |
— |
