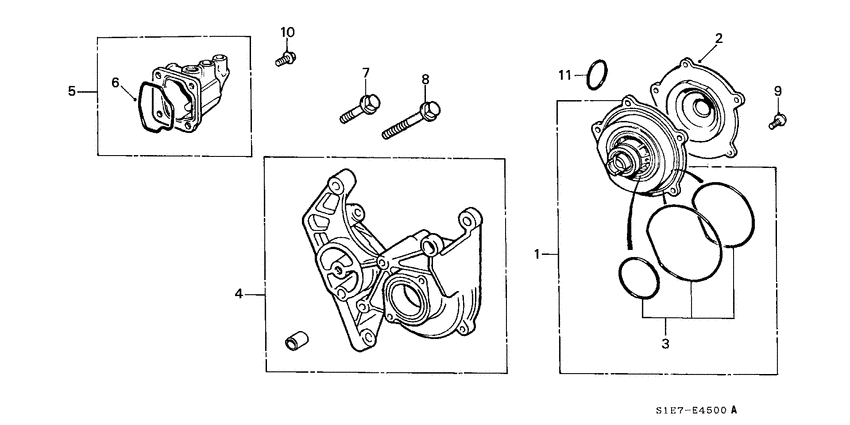

Water pump (DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- intercooler
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-P5T-G00
Pump comp
|
19200-P5T-G00 |
— | ||
|
2
|
2
19210-P5T-G00
Cover
|
19210-P5T-G00 |
— | ||
|
3
|
3
19222-P5T-G00
Packing set
|
19222-P5T-G00 |
— | ||
|
4
|
4
19230-P5T-G00
Bracket
|
19230-P5T-G00 |
— | ||
|
5
|
5
19350-P5T-G02
Cover assy.
|
19350-P5T-G02 |
— | ||
|
6
|
6
19351-P5T-G00
Packing
|
19351-P5T-G00 |
— | ||
|
7
|
7
99FB1-101-01M-X
Bolt
|
99FB1-101-01M-X |
— | ||
|
8
|
8
99FB1-10181
Bolt
|
99FB1-10181 |
— | ||
|
9
|
9
99FS1-06251
Screw
|
99FS1-06251 |
— | ||
|
10
|
10
99FS1-08201
Bolt
|
99FS1-08201 |
— | ||
|
11
|
11
19223-P5T-G00
O-ring
|
19223-P5T-G00 |
— |
