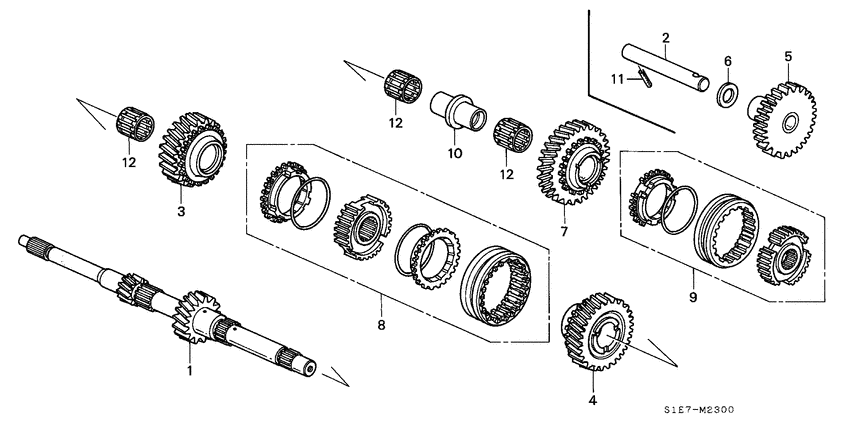

Mainshaft (DIESEL) Diagram Honda CIVIC
- Year
- 1998
- Model code
- CIVIC AERODECK
- Sales region
- General
- Engine
- 20T2R
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KG
- left-hand drive
- +
- sunroof
- +
- power window
- +
- srs driver & passenger
- +
- front ashtray in black
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-P6A-F00
Shaft comp.
|
23210-P6A-F00 |
— | ||
|
2
|
2
23261-PG1-L60
Shaft
|
23261-PG1-L60 |
— | ||
|
3
|
3
23441-PG1-K30
Gear
|
23441-PG1-K30 |
— | ||
|
4
|
4
23451-PG1-L60
Gear
|
23451-PG1-L60 |
— | ||
|
5
|
5
23540-P6A-000
Gear comp
|
23540-P6A-000 |
— | ||
|
6
|
6
23543-PG1-L60
Washer
|
23543-PG1-L60 |
— | ||
|
7
|
7
23581-PG1-L60
Gear
|
23581-PG1-L60 |
— | ||
|
8
|
8
23623-P6A-315
Sleeve set
|
23623-P6A-315 |
— | ||
|
9
|
9
23626-P6A-315
Sleeve set
|
23626-P6A-315 |
— | ||
|
10
|
10
23915-P6A-000
Collar
|
23915-P6A-000 |
— | ||
|
11
|
11
90702-P6A-000
Pin
|
90702-P6A-000 |
— | ||
|
12
|
12
91104-PG1-K30
Bearing
|
91104-PG1-K30 |
— |
