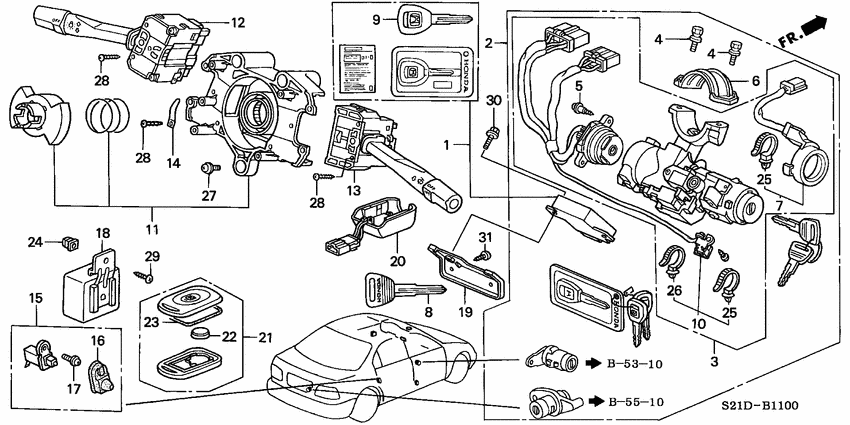

Combination switch (LH) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- transmission
- 4AT
- Number of doors
- 4
- grade
- LXI
- abs
- +
- power steering
- +
- area code
- TW
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
- srs driver
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
06350-S04-950
Cylinder set
|
06350-S04-950 |
— | ||
|
3
|
3
35100-S04-931 Lock assySTEERING |
35100-S04-931 |
US $249.60 |
||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-S04-003 ScrewRECESSED |
35103-S04-003 |
US $1.61 |
||
|
6
|
6
35108-S04-003 HolderCOLUMN |
35108-S04-003 |
US $2.10 |
||
|
8
|
8
35113-SH3-013 KeyBLANK |
35113-SH3-013 |
US $13.68 |
||
|
10
|
10
35130-S04-E01
Switch comp
|
35130-S04-E01 |
— | ||
|
11
|
11
35251-S04-A81
Body comp
|
35251-S04-A81 |
— | ||
|
12
|
12
35255-SR3-G02
Switch assy
|
35255-SR3-G02 |
— | ||
|
13
|
13
35256-SR3-G21
Switch assy
|
35256-SR3-G21 |
— | ||
|
15
|
15
35400-SL4-013 Switch assyDOOR |
35400-SL4-013 |
US $30.29 |
||
|
16
|
16
35401-SL4-003 CoverDOOR SWITCH |
35401-SL4-003 |
from US $4.62 |
||
|
17
|
17
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
25
|
25
91551-SW5-003 ClipHARNESS BAND (BROWN) (151MM) |
91551-SW5-003 |
from US $1.61 |
||
|
26
|
26
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
27
|
27
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
28
|
28
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
