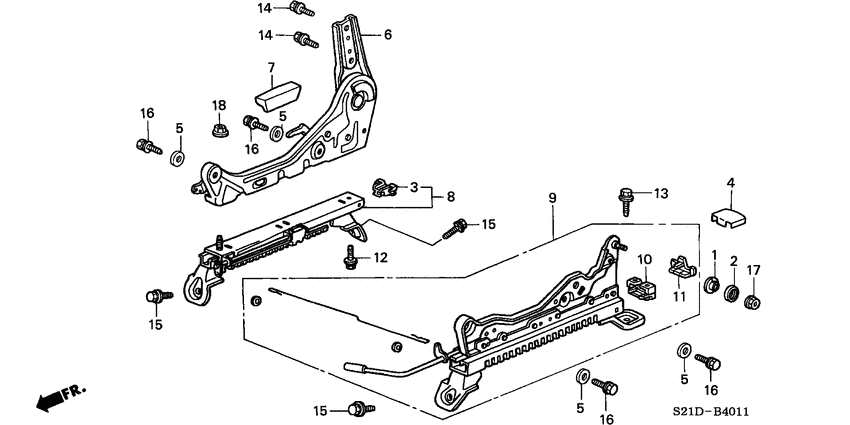

Front seat components (R.; 2) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- transmission
- 5MT
- Number of doors
- 4
- grade
- BASE
- power steering
- +
- area code
- IN
- right-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77208-SA5-003 BushNYLON (TS TECH) |
77208-SA5-003 |
US $2.80 |
||
|
2
|
2
77209-SB0-003
Washer
|
77209-SB0-003 |
— | ||
|
3
|
3
81261-SH4-A21 CapEND |
81261-SH4-A21 |
US $5.74 |
||
|
4
|
4
81196-S04-000ZA
Cover
|
81196-S04-000ZA |
— | ||
|
5
|
5
81225-S04-000
Washer
|
81225-S04-000 |
— | ||
|
6
|
6
81230-S0A-003
Adjuster
|
81230-S0A-003 |
— | ||
|
7
|
7
81231-S10-003ZB KnobR. RECLINING *NH264L* |
81231-S10-003ZB |
US $5.88 |
||
|
8
|
8
81260-S04-J12
Adjuster
|
81260-S04-J12 |
— | ||
|
9
|
9
81270-S04-J12
Adjuster
|
81270-S04-J12 |
— | ||
|
10
|
10
81271-S0A-J01 CapSLIDE ADJUSTER END |
81271-S0A-J01 |
US $3.64 |
||
|
12
|
12
90128-SR4-003 Bolt-washer8X19 |
90128-SR4-003 |
US $1.96 |
||
|
13
|
13
90135-SK7-A01 Bolt-washer10X27 |
90135-SK7-A01 |
US $3.77 |
||
|
14
|
14
90143-SR3-000 Bolt-washer10X22 |
90143-SR3-000 |
US $2.38 |
||
|
15
|
15
90155-SH3-000 Bolt-washer8X25 |
90155-SH3-000 |
US $4.59 |
||
|
16
|
16
93407-080-160-7 Bolt-washer8X16 |
93407-080-160-7 |
US $0.74 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
