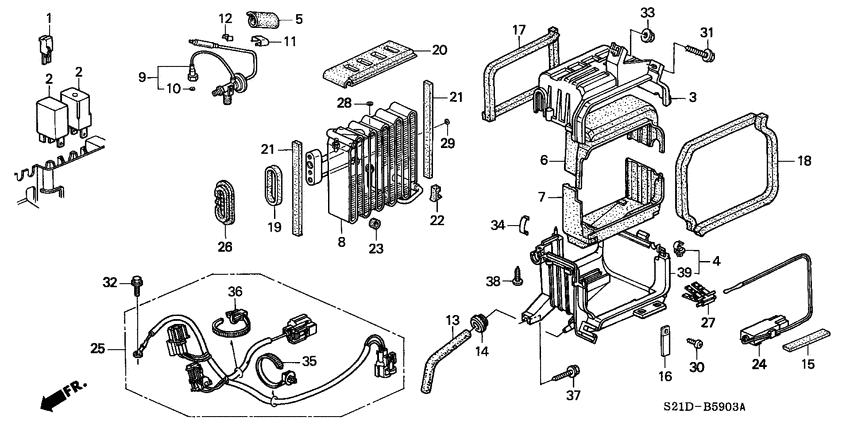

Air conditioner (COOLING UNIT; VN) Diagram Honda CIVIC
- Year
- 2000
- Model code
- CIVIC
- Sales region
- General
- Engine
- D16Y
- transmission
- 5MT
- Number of doors
- 4
- grade
- EX
- power steering
- +
- area code
- VN
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $10.21 |
||
|
2
|
2
39794-S04-004
Relay assy
|
39794-S04-004 |
— | ||
|
2
|
2
39794-S04-003 Relay assyPOWER (4P) (MICRO ISO) (MITSUBA) |
39794-S04-003 |
US $15.23 |
||
|
3
|
3
80201-SR3-K21
Case
|
80201-SR3-K21 |
— | ||
|
4
|
4
80202-S04-K21
Case
|
80202-S04-K21 |
— | ||
|
5
|
5
80205-SH3-K21
Insulator
|
80205-SH3-K21 |
— | ||
|
6
|
6
80205-SR3-K21
Insulator
|
80205-SR3-K21 |
— | ||
|
7
|
7
80206-SR3-K21
Insulator
|
80206-SR3-K21 |
— | ||
|
8
|
8
80215-S04-K91
Evaporator comp.
|
80215-S04-K91 |
— | ||
|
9
|
9
80220-SR3-K01
Valve assy.
|
80220-SR3-K01 |
— | ||
|
10
|
10
80223-SR3-K01
O-ring
|
80223-SR3-K01 |
— | ||
|
11
|
11
80225-SR3-K01
Clamp
|
80225-SR3-K01 |
— | ||
|
12
|
12
80226-S04-K01
Spacer
|
80226-S04-K01 |
— | ||
|
13
|
13
80271-S04-000 HoseDRAIN |
80271-S04-000 |
US $4.62 |
||
|
14
|
14
80272-SF4-000 GrommetDRAIN HOSE |
80272-SF4-000 |
US $2.17 |
||
|
15
|
15
80283-SR3-K11
Insulator d
|
80283-SR3-K11 |
— | ||
|
16
|
16
80284-SR3-K01
Clamp
|
80284-SR3-K01 |
— | ||
|
17
|
17
80286-SR3-K21
Seal
|
80286-SR3-K21 |
— | ||
|
18
|
18
80287-SR3-K21
Seal
|
80287-SR3-K21 |
— | ||
|
19
|
19
80288-S04-K01
Seal
|
80288-S04-K01 |
— | ||
|
20
|
20
80290-S04-K31
Cover
|
80290-S04-K31 |
— | ||
|
21
|
21
80291-S04-K31
Seal
|
80291-S04-K31 |
— | ||
|
22
|
22
80292-S04-K31
Seal
|
80292-S04-K31 |
— | ||
|
23
|
23
80293-S04-K31
Seal
|
80293-S04-K31 |
— | ||
|
24
|
24
80430-S04-K91
Thermostat
|
80430-S04-K91 |
— | ||
|
25
|
25
80460-S04-K01
Harness
|
80460-S04-K01 |
— | ||
|
26
|
26
80464-S04-K01
Grommet
|
80464-S04-K01 |
— | ||
|
27
|
27
80566-SR3-K01
Clip
|
80566-SR3-K01 |
— | ||
|
28
|
28
80872-SR3-K01 O-ring1/2" |
80872-SR3-K01 |
US $2.31 |
||
|
29
|
29
80873-SR3-K01 O-ring8MM |
80873-SR3-K01 |
US $2.31 |
||
|
30
|
30
90132-SR3-K01
Screw
|
90132-SR3-K01 |
— | ||
|
31
|
31
90136-SR3-K01 Screw-washerTAPPING, 6X20 |
90136-SR3-K01 |
US $2.31 |
||
|
32
|
32
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
33
|
33
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
US $1.47 |
||
|
34
|
34
90659-SH3-K21
Clamp
|
90659-SH3-K21 |
— | ||
|
35
|
35
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $3.40 |
||
|
36
|
36
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
37
|
37
93404-060-250-8 Bolt-washer6X25 |
93404-060-250-8 |
from US $0.65 |
||
|
38
|
38
93903-14420 ScrewTAPPING, 4X16 |
93903-14420 |
US $0.37 |
||
|
39
|
39
80202-SR3-K21
Case
|
80202-SR3-K21 |
— |
