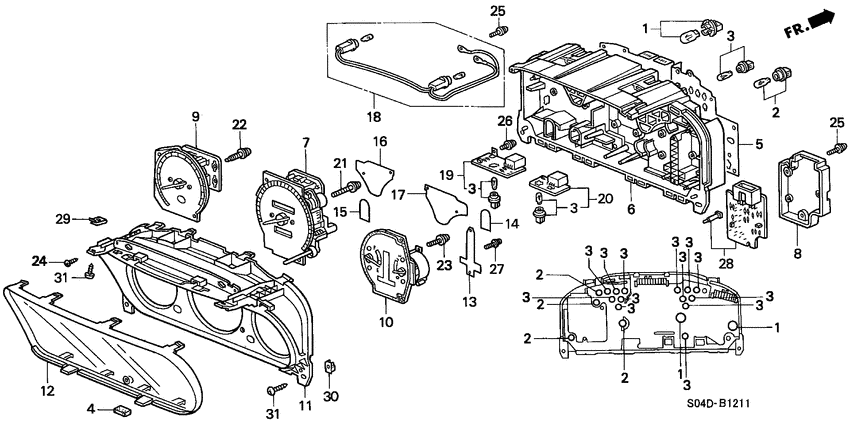

Combination meter components (YAZAKI) Diagram Honda CIVIC
- Year
- 1999
- Model code
- CIVIC
- Sales region
- General
- Engine
- VA
- transmission
- 4AT
- Number of doors
- 4
- grade
- VTI LEV
- abs
- +
- area code
- TW
- left-hand drive
- +
- power window
- +
- air conditioner (manual)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
78116-S04-901
Cover
|
78116-S04-901 |
— | ||
|
10
|
10
78130-S21-D32
Meter assy
|
78130-S21-D32 |
— | ||
|
10
|
10
78130-S21-D12
Meter assy
|
78130-S21-D12 |
— | ||
|
11
|
11
78155-S21-T51
Visor assy
|
78155-S21-T51 |
— | ||
|
11
|
11
78155-S21-D12
Visor assy
|
78155-S21-D12 |
— | ||
|
13
|
13
78157-S04-901
Lens
|
78157-S04-901 |
— | ||
|
14
|
14
78157-S04-931
Lens
|
78157-S04-931 |
— | ||
|
19
|
19
78190-S04-941
Circuit assy.
|
78190-S04-941 |
— | ||
|
25
|
25
78193-S04-941 ScrewTAPPING WASHER, 3X12 |
78193-S04-941 |
US $1.19 |
||
|
27
|
27
78193-S04-961
Screw
|
78193-S04-961 |
— | ||
|
28
|
28
78230-S21-H71
Panel
|
78230-S21-H71 |
— |
